2U Redundant 600W Power Supply TC-600RVN2
TC-550RVN2, TC-700RVN2, TC-600RVN2

Features

  • E.O.L. (End of Life) as of 1/30/19
  • 600W
  • 2U Redundant Power Supply
  • ATX 12V / EPS 12V
  • Dimensions: 11.81″ x 3.98″ x 3.3″
  • Dimensions(mm): 300 x 101 x 84
  • Efficiency: 76% Typical at full load

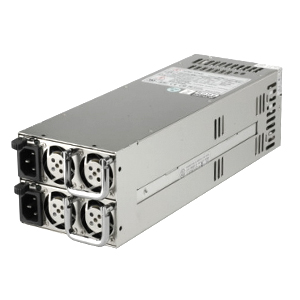

2U Redundant 600W Power Supply TC-600RVN2 Product Description

The 2U Redundant 600W Power Supply TC-600RVN2 is equipped with current sharing, universal full range AC input, power fault alarm signals, and alarm resets to facilitate their use and to monitor the power unit. Once any single point fails, the spare module will automatically support your system’s power consumption and keep it working properly. The frontal LEDs indicate whether your unit is in a stand-by, power on, or failed mode. The TC-600RVN2 is a good fit with any of your data center, cloud computing, and enterprise server applications to ensure no power interruptions affect your critical data-processing routines.

AC Input
Voltage: 90~264VAC Full Range
Frequency: 50/60Hz.
Input Current: 10A for 115V AC, 5A for 230VAC.
Inrush Current: 60A for 115VAC, 80A for 230VAC

Thermal Protection
The power supply shall go into thermal protection as the case temperature exceeds 86ºC(±5ºC)limit.
The output shall recover only when the temperature becomes normal and AC power is turned on again

Environmental
Operating Temperature: 0°C to 45 °C
Storage Temperature: -20°C to +70°C
Operating Humidity: 5% to 95%, non-condensing
Storage Humidity: 20% to 90%, non-condensing

Safety & EMI/RFI
Safety Standards: TO MEET CUL UL, TUV
Withstand Voltage: I/P-O/P:1.5KVAC FOR 1 minute. I/P-FG:1.5KVAC For 1 minute
Isolation Resistance: I/P-O/P,I/P-FG,O/P-FG: 500VDC , 50M ohms min.

DC Output

Each of the 1+1 redundant power supply modules shall be capable of supplying the output currents of as below subject to the listed conditions and a total output power of 550watts. Due to active current share, the actual maximum steady state current from each output shall be about half of the maximum current specified.

Output Voltage +5V DC +12V DC +3.3V DC -12V DC +5VSB
Output Current(Max) 32A 42A 25A 1A 3A
Output Current(Min.) 1A 3A 1A 0A 0.1A
Ripple/Noise Max.(P-P): 50mv 70mv 50mv 70mv 50mV
Line Regulation: ±1﹪ ±1﹪ ±1﹪ ±1﹪ ±1﹪
Load Regulation: ±5﹪ ±5﹪ ±5﹪ ±5﹪ ±5﹪



1.Total Max output of +5V AND +3.3V not exceed 200W
2.Power module Total output power not exceed 600W for TC-600RVN2
3.Noise bandwidth is from DC to 20MHz.

24-pin P4 MB peripheral FDD 8-Pin 6-Pin SATA
24 Pin P4 MB Peripheral FDD 8-Pin 6-Pin SATA
X 1 X 1 X 18 X 2 X 1 X 2 X 2
