Features

  • E.O.L. (End of Life) as of 1/30/19
  • 1350W
  • Redundant Power Supply
  • ATX 12V / EPS 12V
  • Dimensions(mm): 300 x 101 x 125
  • Active Power Factor Correction

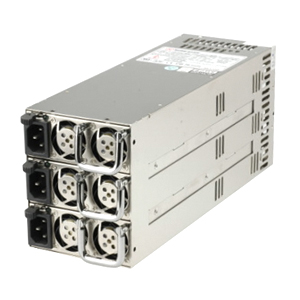

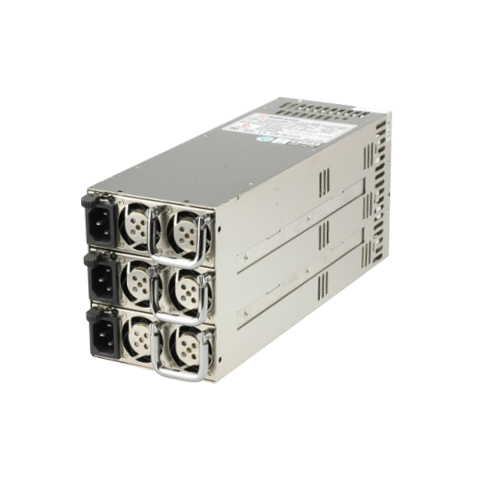

TC-1350RVN3 N+1 1350W Redundant Power Supply Product Description

The TC-1350RVN3 N+1 1350W Redundant Power Supply is equipped with current sharing, universal full range AC input, power fault alarm signals, and alarm resets to facilitate their use and to monitor the power unit. Once any single point fails, the spare module will automatically support your system’s power consumption and keep it working properly. The frontal LEDs indicate whether your unit is in a stand-by, power on, or failed mode. The TC-1350RVN3 is a good fit with any of your data center, cloud computing, and enterprise server applications to ensure no power interruptions affect your critical data-processing routines.

AC Input
Input Voltage: 100~ 240VAC,±10%
Input Current: 12A For 115VAC,6A For 230VAC
Input Frequency: 47Hz~63Hz
Power Factor: >0.96@230VAC/50Hz,full load

Protections
Over Power: 110%~150% rated output power
Over Voltage: +5V→5.7V~6.5V,+3.3V→3.7V~4.1V,+12V→12.8V~13.9V
Short Circuit: Shut down o/p voltage, re-power on to recover

Function
Power Good Signal: 100ms~500ms, TTL compatible signal
Power Fail Delay: >1msec. ,TTL compatible signal
PS-ON: Power off:PS-ON = 2V min. ;Power on:PS-ON = 0.8V max.

Environmental
Operating Temperature: 0˚C to 45˚C
Storage Temperature: -20˚C to +70˚C
Operating Humidity: 20% to 90%,non-condensing
Storage Humidity: 5% to 95%, non-condensing

Safety & EMI/RFI
Safety Standards: UL,cUL,TUV,CB
EMI/RFI Standards: CISPR22(EN55022) Class A, FCC Part15 Class A

Others
MTBF: 100,000 hours
Coolings: 38x38x28mmx6 DC FANS
Dimension(DxWxH): 300x101x125mm

DC Output

Output Voltage
Output Current
Regulation
Output Ripple & Noise Max.(p-p)
TC-1350RVN3
Min.
Max.
LOAD
LINE
+5V 3A 60A 5% 1% 50mV
+3.3V 3A 47A 5% 1% 50mV
+12V 4.5A 98A 5% 1% 70mV
-12V 0A 1.5A 5% 1% 70mV
+5VSB 0.3A 3A 5% 1% 50mV
Efficiency
72% Typical at full load
HoldupTime
16m sec. minimum, at full load
REMARKS:
1.Total Max output of +5V AND +3.3V not exceed 400W
2.Total output power not exceed 1350W for TC-1350RVN3.
3.Noise bandwidth is from DC to 20MHz.
24-pin
P4 MB
peripheral
FDD
8-Pin
24 Pin P4 MB Peripheral FDD 8-Pin
X 1 X 1 X 24 X 3 X 1
