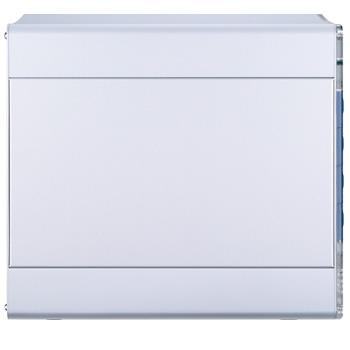

JBOD Chassis 4-bay Multilane to SAS/SATA NS750S
NS750S
NS750S
NS750S
NS750S

Features

  • EOL (End-of-life)
  • Supports SAS/SATA (3/6 Gbps)
  • Aluminum housing, anodized surface, benefits for cooling and durability
  • Backplane design for four removable SAS/SATA drive trays
  • Built-in fans for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm.

JBOD Chassis 4-bay Multilane to SAS/SATA NS750S Product Description

Host Interface SAS/SATA 3G or 6G (one MultilaneX4 connector)
HDD Interface SAS/SATA (3.0Gb/s or 6.0Gb/s)
Data Transfer Rate SAS or SATA 3/6 Gbps
LED Display White – Power on indicator
Blue – Activity (HDD Accessing) indicator
LED Display for Environmental Monitoring POWER on LED – white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Dimension (D):23.15cm (W):15.68cm (H):20.97cm
Material Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face
Power Supply 220W (High reliability of IPC form-factor)
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling Two 60 x 60 x 15 mm Cooling Fans
(Without any HDD installed, fan don’t spin up.)
O.S. support OS Independent

NS750S

The Netstor’s 750 series is a stylish 4-bay, hot-swappable, SAS/SATA compatible external enclosure. The housing is made from an elegant aluminum with anodized surface for maximum cooling and the structure made from heavy duty material for solid protection on disks. The 750 series is built-in directly SAS/SATA 6.0Gpbs (backword with 3.0Gb/s) backplane design with no internal cable for best performance and superior airflow and the host connection is designed with the new interface technology of Multi-lane (SFF8470) in up to 10Gbps bandwidth for 4-disks in single connectivity.



Cable
AAMSM1 MultiLane Screw (SFF8470) to miniSAS (SFF8088), Length: 1mNS750SFor Host Connector miniSAS (SFF8088)
AAMSS1 MultiLane Screw (SFF8470) to MultiLane Screw (SFF8470), Length: 1mNS750SFor Host Connector MultiLane Screw (SFF8470)

Enclosure x 1
HDD Tray x 4
Multilane Cable x 1 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 16
Key for HDD tray x 2
