Features

  • EOL (End-of-life)
  • External 2U-12 bay Rackmount Chassis
  • External PCI-e (PCI Express) x8 Host Interface
  • Supports SAS/SATA (3 Gbps/ 6 Gbps)
  • Up to 12 Removable SAS/SATA Drive Trays
  • Optional Dual Hot-Swappable Power Supplies
  • LED Indicators for Power and Activity on each HDD Tray
  • Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm

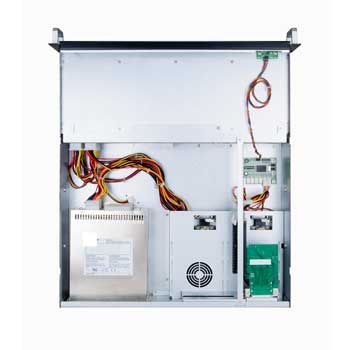

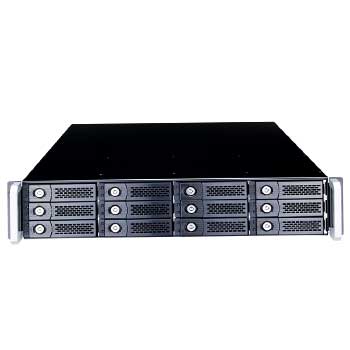

NA322A-R 2U-12 Bay JBOD Chassis External PCIe To SAS/SATA Product Description

Host Interface External PCI-e (PCI-Express) x8
HDD Interface SAS/SATA 3.0/6.0 Gbps
Data Transfer Rate Up to 20Gbps
LED Display(Tray) Green – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring FAN normal – Green; fail – Red (too slow rpm or stop)
TEMP normal – Green; over 55°C – Red
Dimension (W):48.2 cm (H):8.85 cm (D): 55.9 cm
Material Heavy-duty cold-rolled steel
Power Supply 400W mini-Redundant
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling Two 75 x 75 x 28 mm Hot-Swappable Blowers
O.S. support OS Independent (OS will be provided from the PCI-e Raid Control card manufacturer)



With the innovative architecture, NA322A-R is designed to allow you plugging any standard SAS 3/6 Gbps or SATA II/III PCI-e Raid controller directly into its internal PCI-e slot and use its high speed external PCI-Express x8(20Gbps) as the host interface. Moreover, NA322A-R provides up to 12 3.5″ Hard Drives capacity with highest performance, fewer and lower-cost components. The substantial External PCI-e cable connection also gives system operations the high reliablity.

Host Requirement and Cable length available

  • Apple Mac Pro or PC workstation with one available PCI-e x8 slot
  • External PCI-e cable available length – up to 5 Meter

Compatible SAS/SATA HBA

  • Compatible with all 16 ports of SAS/SATA PCI-e controller



Model No. No. of Drives Bus Type HDD Support
Adaptec RAID 31205 12 PCI-e x8 SAS/SATA
Adaptec RAID 51245 12 PCI-e x8 SAS/SATA
3Ware 9650SE-12ML 12 PCI-e x8 SATA
Areca ARC-1231ML 12 PCI-e x8 SATA
Areca ARC-1680ix-12 12 PCI-e x8 SAS/SATA
HighPoint RocketRAID2340 16 PCI-e x8 SATA
Promise SuperTrak EX12350 12 PCI-e x8 SATA

Enclosure x 1
HDD Tray x 12

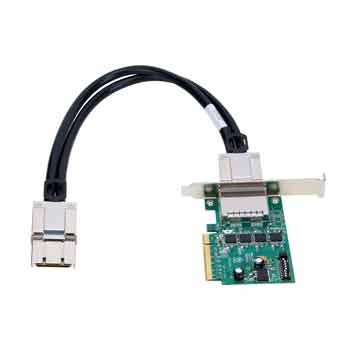

PCIe x8 Host Adaptor with standard and low profile host bracket x 1
External PCI-e x8 cable (1.5 meter) x 1
Internal miniSAS(SFF8087) to miniSAS(SFF8087), 30cm x3
Power Cord x1
Hard Disk Drive mounting screw x 48
Key for HDD tray x 2
