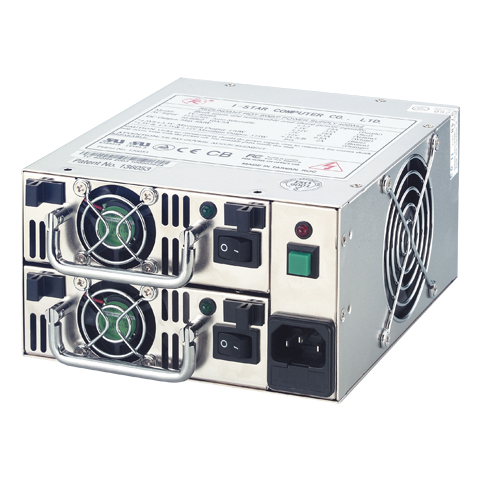

Mini Redundant Power Supply 300W TC-300R8

Mini Redundant Power Supply 400W TC-400R8

Features

300W
Mini Redundant Power Supply
Dimensions(mm): 174 x 150 x 86
ATX 12V / EPS 12V
Cooling by forced air 2x40mm Fan, 1x80mm Fan
Temperature Range: Operation 0˚C～50˚C
Hold Up Time: 16ms at maximum load & normal input voltage
Efficiency: 67% TYPICAL(Normal Line)

Specifications
Download

Mini Redundant Power Supply 300W TC-300R8 Product Description

The Mini Redundant Power Supply 300W TC-300R8 includes hot-swap and power sharing functions. The mini redundant power supply is ideal for telecommunications and industrial systems. The TC-300R8 power signal should be asserted high to indicate that +5VDC and +3.3VDC output are above the low voltage thresholds. Compatible signal out with 100ms to 500ms. The power supply offers over power protections and shall shut down if the output power exceeds 130% to 160%. In addition, a short circuit placed between the DC return and the output shall cause no damage and the power supply shall shutdown.

AC Input
Voltage: 100～240V, (115/230 auto)
Frequency: 50/60Hz
Input Current: 8A/4A For 115/230VAC
Inrush Current: 60A/80A MAX FOR 115/230

Function
Power Good Signal: 100ms~500ms, TTL compatible signal
Power Fail Delay: >1msec. ,TTL compatible signal
PS-ON: Power off:PS-ON = 2V min. ;Power on:PS-ON = 0.8V max.

Environmental
Operating Temperature: 0˚C to 45˚C
Storage Temperature: -20˚C to +70˚C
Operating Humidity: 20% to 90%,non-condensing
Storage Humidity: 5% to 95%, non-condensing

Safety & EMI/RFI
Safety Standards: UL,cUL,TUV,CB
EMI/RFI Standards: CISPR22(EN55022) Class A, FCC Part15 Class A

Others
MTBF: 100,000 hours
Cooling: 2x40mm, 1x80mm Fans
Dimension(DxWxH): 174x150x86mm

DC Output

OUTPUT VOLTAGE	OUTPUT CURRENT		REGULATION		OUTPUT
OUTPUT VOLTAGE	MIN(A)	MAX(A)	LOAD	LINE	RIPPLE & NOISE MAX.[P-P]
+5V	3	30	±5%	±1%	50mV
+12V	2	15	±5%	±1%	120mV
-5V	0.1	0.5	±10%	±1%	50mV
-12V	0.1	0.8	±10%	±1%	150mV
+3.3V	1	24	±5%	±1%	50mV
+5VSB	0.1	2	±5%	±1%	50mV
