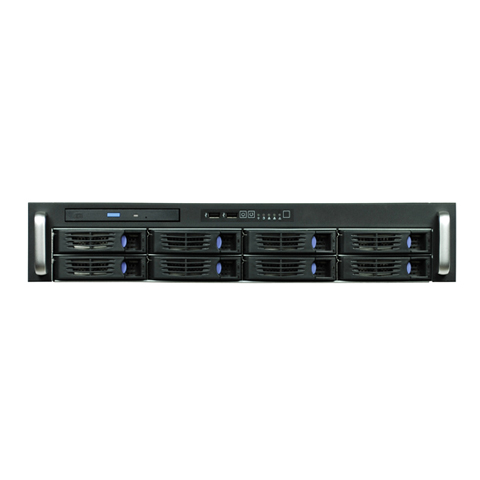

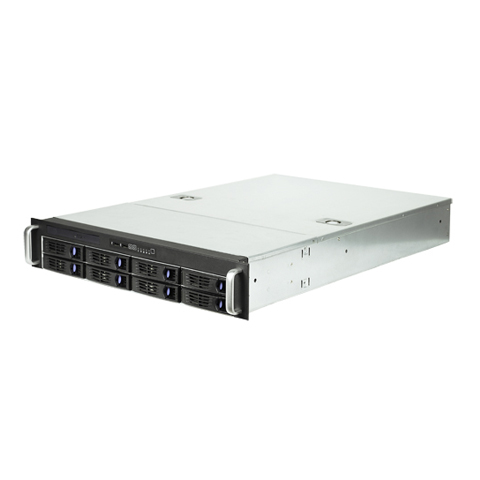

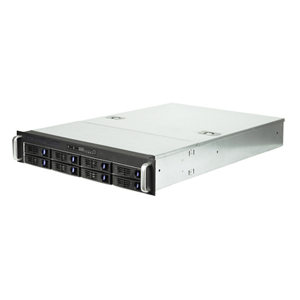

EJ-R2308-01A 2U Rackmount Case Product Description
The EJ-R2308-01A 2U Rackmount Case offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-R2308-01A also features a quality fan filter and 4 x 80 cm cooling fan for optimum ventilation of the system.
| Structure | Metal material | SGCC |
|---|---|---|
| Metal thickness | 1.2 mm | |
| Panel material | ABS | |
| M/B support | EEB (12″ x 13″) / CEB (12″ x 10.5″) / ATX | |
| CPU | DP Xeon(Intel) / DP Opteron(AMD) / Core(Intel) | |
| Size | D*W*H（mm） | 680 * 430 * 88 |
| D*W*H（inch） | 26.7″ * 16.9″ * 3.5″ | |
| Drive Bay | 3.5” /2.5” HDD | 8 x 3.5″ (hot swap) |
| Slim CD-ROM | 1 | |
| Slim FDD | 0 | |
| Power support | 2U standard power supply / Redundant 1+1 | |
| Front panel | Control button | Power On/Off/Reset |
| Indicator | Power status / HDD Activity / Lan Activity | |
| I/O ports | USB (2.0 x 2) | |
| Expansion | Switchable rear door | |
| 7 x half-length slots | ||
| Riser card(optional) | ||

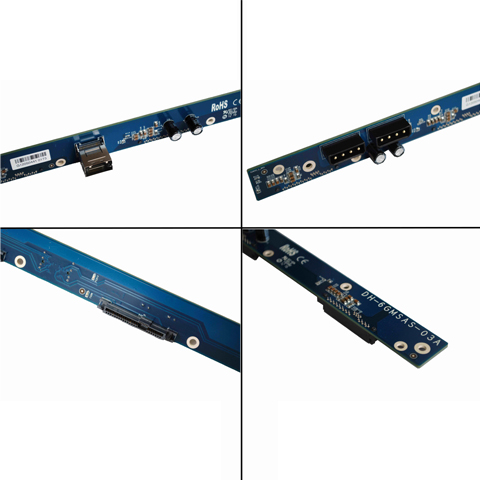

| Backplane | 2 (Mini-SAS) | |

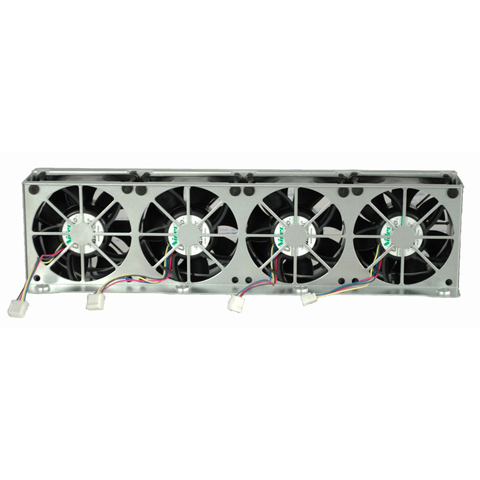

| System cooling | Middle | 4 * 8025 (4000r/m, hot swapable) fans |
| Applications | 1. Security servers, VOD servers 2. Web servers(website/email/fire wall/VPN/storage) 3. Online game server(DB/Game/Gate/Log-in/web/SQL) 4. High server group 5. NAS and SAN |
|
