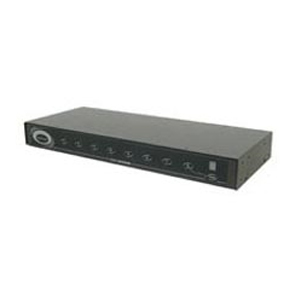

EJ-KVM408J31 KVM Switch 8 Port Rackmountable KVM w/ 2 Consoles Specifications
The EJ-KVM408J31 KVM Switch 1U form factor supports a wide range of PC hardware and software platforms and has built in OSD (On-Screen-Display) for server management. It is a perfect solution for network administrators to access and control servers from one location.
| Dimension (cm) | 41(L)X16.5(W)X4.4(H) |
|---|---|
| PC Port | 8 |
| Console Port | 2 (One Local and CAT5) |
| Remote Console Port Receiver PC Port Connector (All Female Types) |
1 VGA HDDB 15-pin (shared with PS/2 keyboard and mouse) |
| Console Port Connector (All Female Types) |
Local Console: PS/2 Keyboard Mini Din 6 pin PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin Remote Console: RJ-45 8P8C |
| Daisy Chain Port Connector (All Female Type) |
Local Console: PS/2 Keyboard Mini Din 6 pin PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin |
| PC Port LED PC Selection |
8 On Screen Display Menu, Hot Key, Push Button |
| Bank 7 segment LED | One Bank LED, Two PC Port LEDs |
| On Screen Display Control | Yes |
| Scan Intervals | 5 ~ 99 Sec. |
| Keyboard Emulation | PS/2 |
| Mouse Emulation | PS/2 |
| VGA Resolution | 1920 X 1440 |
| Bandwith | 200MHZ |
| MAX PC Connection | 120 |
| Housing | Metal |
| Cat5 Remote Console Receiver Power Adapter KVM Switch Power Adapter |
DC 9V, 500A DC 9V, 500A |
| Operation Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Humidity | 0~95% Non-condensing |
| Size | 19″ Rackmount size/ 2RU |
| Weight (g) | 2010g |
