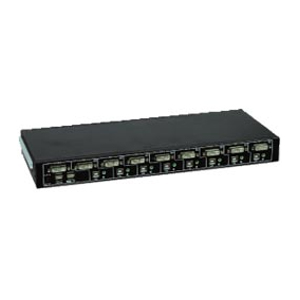

EJ-KVM408DVI KVM Switch 8 Port DVI USB Specifications

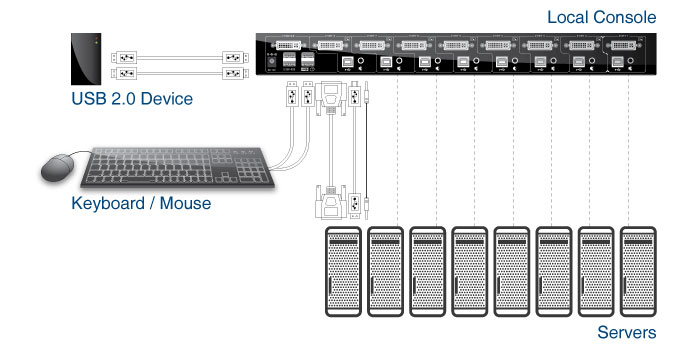

The EJ-KVM408DVI KVM Switch is a modular design TMDS-compliant 8-port DVI USB KVM Switch with Audio switching function for Gemini and Unicorn consoles. This design allows an upgrade from a single port console to multiple ports. It allows you to control 8 USB-enabled multimedia computers with DVI video interfaces, using only one USB keyboard, mouse, monitor and a set of speakers. You can use keyboard hotkeys to select the computers, USB device hub port control and audio channels. It is TMDS compliant to support DDC2B emulation and HDCP compliant for digital contents protection.
| System Connections | 8 |
|---|---|
| Connectors | 8 x USB Type B 8 x DVI-I Single Link (digital only) 8 x 3.5mm audio jack |
| Rear Local Console Connectors | 1 x DVI-I Single Link (digital only) 2 x USB 1.1 Type A for Keyboard / Mouse 1 x 3.5mm audio jack |
| USB Hub Ports | 2 x USB 2.0 Type A device hub port |
| PC Selection | Hotkey |
| Scan Delay Time | 5 ~ 100 sec programmable |
| Net Weight | 2.0 Kg / 4.4 lbs |
| Dimension | 420 x 170 x 44 mm / 16.5 x 6.7 x 1.7 inches |
