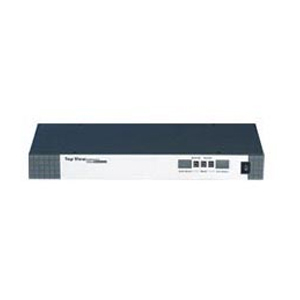

EJ-KVM208X3 KMV Switch 8 Port Rackmountable KVM Console Specifications
The EJ-KVM208X3 KMV Switch 1U form factor supports a wide range of PC hardware and software platforms and has built in OSD (On-Screen-Display) for server management. It is a perfect solution for network administrators to access and control servers from one location.
| Dimension (cm) | 16.5(W) x 41(L) x 4.4(H) |
|---|---|
| Power Adapter | DC 12V, 1A or 9V |
| PC Port | 8 |
| Console Port | 1 |
| PC Port Connector (All Female Types) |
PS/2 Keyboard Mini Din 6 pin PS/2 Mouse Mini Din 6 pin VGA HDDB 15 pin |
| Console Port Connector (All Female Types) |
PS/2 Keyboard Mini Din 6 pin PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin |
| Maximum PC Connection | 120 |
| PC Selection | Hot Key / Button |
| Scan Intervals | 5 ~ 99 sec. |
| Keyboard Emulation | PS/2 |
| Mouse Emulation | PS/2 |
| VGA Resolution | 2048 X 1536 |
| Bandwidth | 400MHZ |
| Maximum Daisy Chain Level | 8 Level |
| Housing | Metal |
| Operation Temperature | 0~40℃ |
| Storage Temperature | -20~60℃ |
| Humidity | 0~80℃ Non-condensing |
| Size | 19″ 1U Rackmountable/ 1 RU |
| Weight (g) | 2200g |
