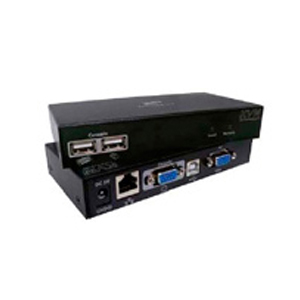

EJ-BX010139 and EJ-BX020140 Extender USB KVM To CAT5-TX Extender 2 Port USB CAT5-RX
The EJ-BX010139 and EJ-BX020140 Extender USB KVM CAT5 is designed to control the PC, Server or KVM Switch up to 1000 feet (300 meters) away from your keyboard, mouse and VGA monitor. It is a good solution for factory and construction sites, or any harsh environment where it is unsuitable for people to work for a long period of time. You can easily go to remote management for collecting dispersive computers control in one dedicated central control center, demonstration room, meeting room or at your desk. The CAT5 STP (Shielded Twisted Pair) cable/ UTP (Unshielded Twisted Pair) cable or enhanced cable like CAT5e/CAT6 cable is very popular to apply to the LAN network. The EJ-BX010139 & EJ-BX020140 extender uses the same existing network construction to transfer local console signals to remote management side.
| Function | USB CAT5 Extender TX | USB CAT5 Extender RX |
|---|---|---|
| USB Keyboard/Mouse Port | Keyboard x 1 Mouse x1 |
Keyboard x 1 Mouse x1 |
| VGA Port | 1 | 1 |
| RJ-45 Port | 1 | 1 |
| Console Port Connector (All Female Type) |
2 USB type A ports VGA HDDB 15-pin (Blue color) |
|
| PC port connector (all female types) |
USB Type B port VGA HDDB 15-pin (Blue color) |
USB Type B port VGA HDDB 15-pin (Blue color) |
| LAN port connector | 8P8C | |
| LED | Local , Remote | Local , Remote |
| Video knob ( for VGA signal adjustment ) |
No | Yes |
| Power Adapter | DC 5V, 1A | DC 5V, 1A |
| Size | Desktop | |
| Weight (Kg) | 1.5 | 1.3 |
| Dimension (cm) | 10.8(L)x7.5(W)x3.2(H) | |
| *The specifications and pictures are subject to change without notice. | ||

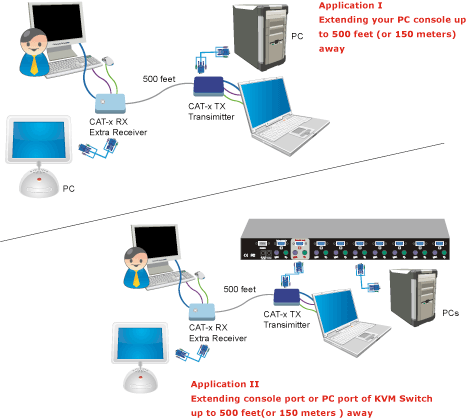

Diagram
