FEATURE:

  • Wall-mount Adapter with interchangeable AC plugs
  • Wide range input (90~264)VAC / (47~63)Hz
  • 6 optional AC plugs
  • Conform to I.T.E. and RoHS
  • Standard output connector: 2.1 x 5.5 x 11mm

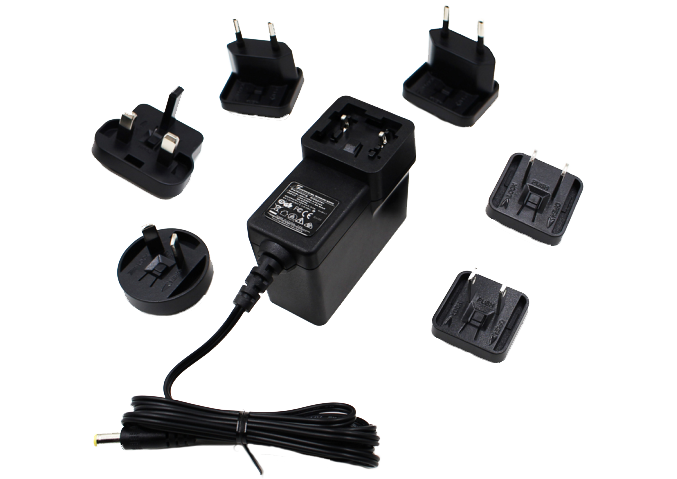

40W Wall-mount Adapter with Interchangeable AC Plugs ZZU1588-40W Product Description

This compact 40W Wall-mount Adapter with interchangeable AC Plugs ZZU1588-40W is UL and CE listed and incorporates a highly regulated output switching power design to assure a constant, accurate DC power delivery to your sensitive portable low voltage devices.

Electrical Specification:

Wall mount type
Input Voltage: 100V~240V
Input Frequency: 47Hz~63 Hz
Output Voltage: 5~48 VDC
Output Current: 6A max
Power: 40W max
Efficiency: Level VI
Dimension: 80(L) x 39(W) x 58(H) mm

DC Outputs:

Model Output Voltage Output Current Efficiency
ZZU1588-600050-XX 5V 6.0A 85.06%
ZZU1588-440090-XX 9V 4.4A 87.57%
ZZU1588-330120-XX 12V 3.3A 87.58%
ZZU1588-260150-XX 15V 2.6A 87.55%
ZZU1588-222180-XX 18V 2.2A 87.57%
ZZU1588-160240-XX 24V 1.6A 87.52%
ZZU1588-080480-XX 48V 0.8A 87.52%
