Features

  • 500W
  • 2U Redundant Power Supply
  • Dimensions(mm): 217 x 82 x 84mm / 8.54 x 3.23 x 3.31inches
  • Hold up time: The output voltages stay in regulation at least 18ms with 100% load after loss of AC input
  • Over Current Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • Short Circuit Protection
  • Safety to meet: UL, TUV, CB, CE, FCC

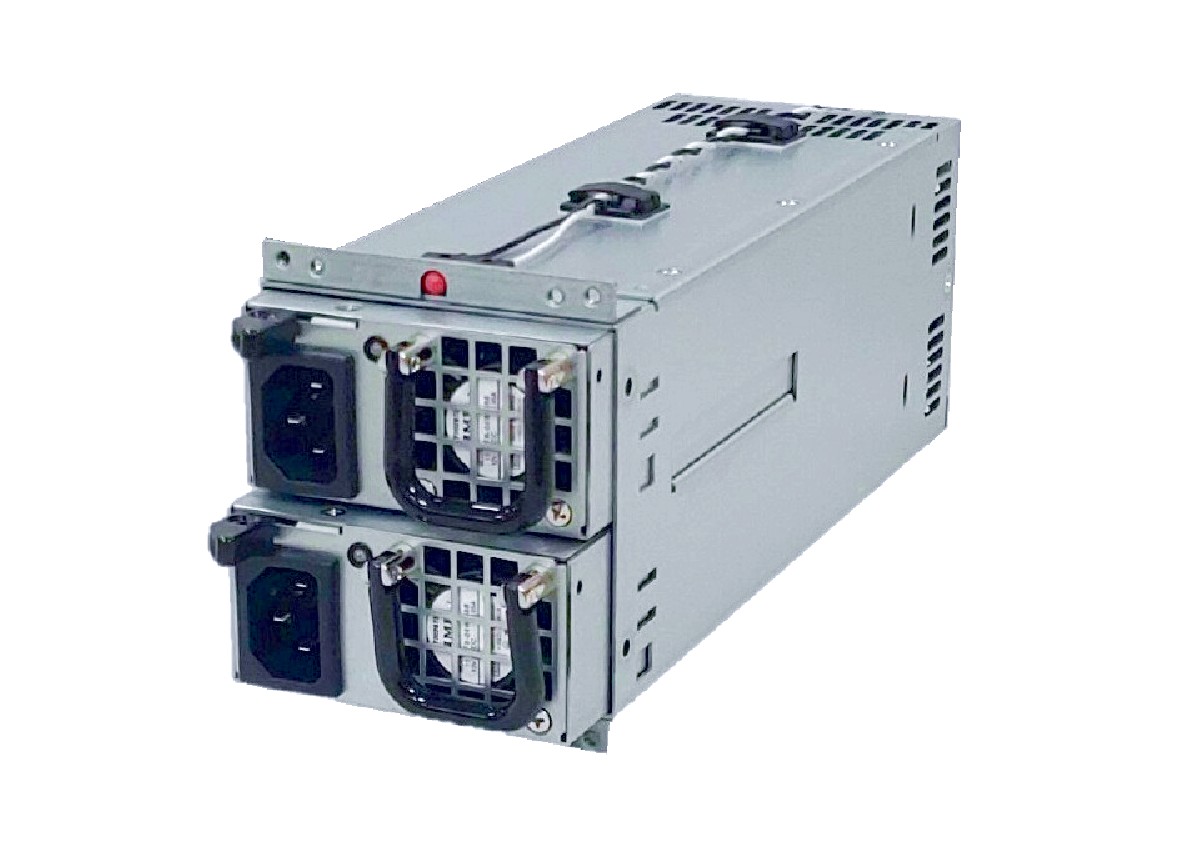

2U Redundant 500W PSU RB2-G500VP Product Description

The 2U Redundant 500W PSU RB2-G500VP offers your servers and workstations zero down time with full power redundancy. Integrated with Active PFC, thermal control fans, hot swappable power modules, and load sharing functions, this 2U redundant series provides ultimate precision power and safety protection for data center and cloud computing environments. Due to its performance efficiency and high quality features, the RB2-G500VP would be the ideal choice for your mission critical system integrations.

AC Input
Input voltage: 100-240Vac Full Range
Frequency: 50-60Hz
Input current: 8.5A for 115VAC, 4A for 230VAC
Inrush current: 30A for 115VAC, 60A for 230VAC
Efficiency: The power efficiency shall meet 80PLUS GOLD
The minimum power factor shall be 0.95 with full load and input 230VAC/50Hz

Thermal Protection
The power supply would be protected against over temperature condition by loss of cooling or excessive ambient temperature. The PSU will shut down in an OTP condition.

Environmental
Operating Temperature: 0°C to +50 °C
Storage Temperature: -20°C to +70°C
Operating Humidity: 20% to 90%, non-condensing
Storage Humidity: 5% to 95%, non-condensing
Altitude during operation: up to 5000m

Safety/EMC
Safety Standards: To meet UL, TUV, CB, CE, FCC



DC Output:

The combined output power from +3.3V and +5V shall not exceed 170W.
The maximum total power shall not exceed 500W.

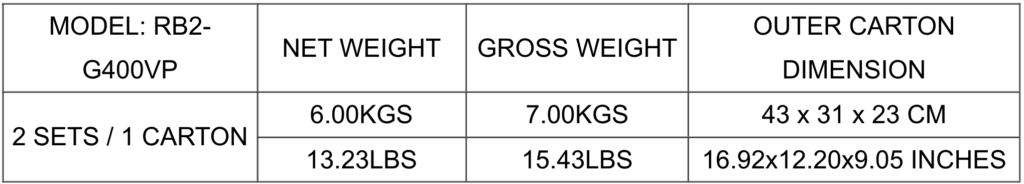

Package and Weight:
