Features

  • E.O.L. (End of Life) as of 1/30/19
  • 500W
  • High Efficiency Power Supply
  • Cooling by forced air 2 x 40 mm Fan
  • Remote On/Off Control
  • Meet CE RoHS 2.0 2011/65/EU and

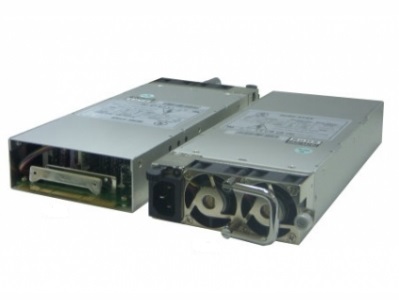

1U Power Supply 500W M1C-500A1 Product Description

This is the specification of 1U Power Supply 500W M1C-500A1; it is intended to describe the functions and performance of the subject power supply. This 500 watts Power Supply with Active PFC (Power Factor Correction) capability, also features Triple circuit protections.

AC Input

  • VOLTAGE: 100~240V(Active PFC/Full Range)FREQUENCY: 50~60Hz
  • FREQUENCY: 50~60Hz
  • INPUT CURRENT: 10A/5A, 115VAC/230VAC
  • INRUSH CURRENT: 25A/50A MAX FOR 115/230
  • THE MINIMUM EFFICIENCY OF THE POWER SUPPLY IS 80% AT FULL LOAD AND 115VAC/60HZ INPUT
  • THE MINIMUM POWER FACTOR AT FULL LOAD SHALL BE 0.98 / 115V 60 HZ AND 0.96 / 230V 50 HZ

Function

  • Power Good Signal: 100ms~500ms, TTL compatible signal

Environmental

  • Operating Temperature: 0˚C to 45˚C
  • Storage Temperature: -20˚C to +70˚C
  • Operating Humidity: 20% to 90%,non-condensing
  • Storage Humidity: 5% to 95%, non-condensing

Dimensions

  • L x W x H: 247.9 x  106  x 40 (mm)
  • 9.76 x 4.17 x 1.57 (inches)

Safety & EMI/RFI

  • Safety Standards: › UL, CB, CE, CCC, FCC, TUV, BSMI

DC Output:

OUTPUT VOLTAGE OUTPUT CURRENT REGULATION OUTPUT
MIN ( A ) MAX ( A ) LOAD LINE RIPPLE & NOISE
MAX. [P-P]
+5V 1 25 ±5% ±1% 50mV
+12V 3 40 ±5% ±1% 70mV
-12V 0 1 ±5% ±1% 70mV
+3.3V 1 25 ±5% ±1% 50mV
+5VSB 0.1 3.5 ±5% ±1% 50mV



(1) The +3.3V and +5V total output shall not exceed 150watts.

(2) total output for this subject power supply is 500 watts.
(3) RipplE and noise measurements shall be made under all specified load conditions through a single pole low pass filter with 20MHz cutoff frequency. Outputs shall bypassed at the connector with a 0.1uF ceramic disk capacitor and a 10uF electrolytic capacitor to simulate system loading.
(4) -5V is option.
