Features

  • Backplane design supports sixteen (16) SATA II/III 3/6 Gbps drives
  • Quad Gigabit Ethernet TCP/IP offload device with load-balancing & failover for high availability
  • Hardware RAID Intel IOP 341 64-bit processor
  • Supports RAID levels 0, 1, 0+1, 5, 6, 10, 50, 60 & JBOD
  • Bulit-in LCD panel for easy setting & mornitoring
  • Fan coolers and power supplies failure detection
  • Online volume expansion & migration
  • Supports offline array roamming
  • Supports MPIO in Windows 2000 & Windows 2003 Server system
  • Supports VMware vSphere5(ESXi 5.0) virtualization
  • Support MC/S, Trunking & LACP
  • Event notification via Email, SNMP trap, Windows & bower
  • iSCSI jumbo frame support
  • Up to 32 hosts clustered for one volume

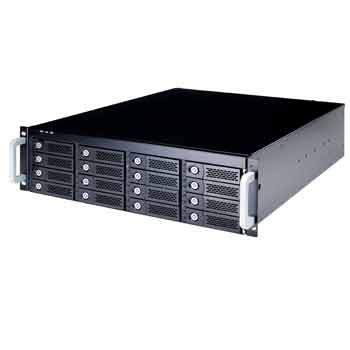

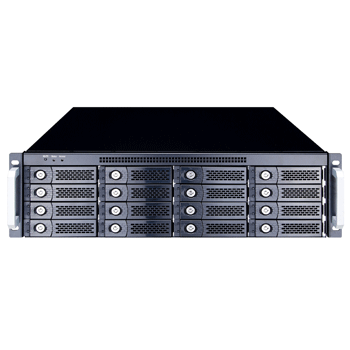

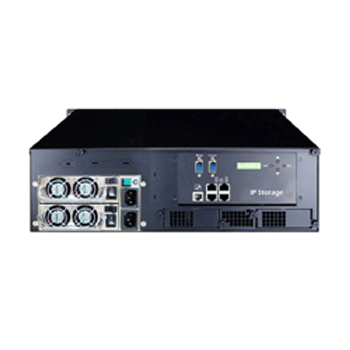

NR330A-IP4 RAID Storage 3U 16 bay GbE iSCSI to SATA II/III Product Description

Host Interface Quad port iSCSI Gigabit Ethernet
HDD Interface SATA II/III (3/6 Gbps)
No. of Disk(s) Up to 16
CPU & Memory Intel IOP 341 & 1G DDR2-533(Upgradable to 2G DDR2)
Raid function RAID 0, 1, 0+1, 3, 5, 6, 10, 50, 60 & JBOD
LED Display for each Tray White – Power On Indicator
Blue – Busy(HDD Accessing) indicator
Red – HDD failure indicator
LED Display for Environmental Monitoring Status LED:
Normal – green
Failure – red (fan stops, over-temperature, HDD/power supply failure)
Access LED:
HDD no access – no light
HDD accessing – flashing green
Material Heavy-duty cold-rolled steel Housing
Dimension 559(D) x 482(W) x 131(H) mm
22(D) x 19(W) x 5.16(H) inch
Power Supply Redundant 400W (IPC-grade)
Input: 90-230V AC, 50/60 Hz
Cooling Two 75 x 75 x 28 mm Hot-Swappable Blowers
O.S. support Windows, Linux, Mac, Solaris
Virtualization VMWare(vSphere5/ESXi 5.0), Hyper-V, Citrix
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -10 to 50°C (14 to 122°F)
Relative Humidity 20 to 80% (non-condensing)

The 3U 16 bay GbE iSCSI RAID storage features embedded high reliability Intel Xscale IOP 341, 800 MHz, 64-bit hardware RAID processor and DDR2-533 memory upgradable up to 2 GB. With high efficiency server-grade 400W redundant hot-swappable power supply, the iSCSI RAID storage enables workloads and applications to run 24/7 without hardware failure, ensuring NR330A-IP4 the enterprise-class storage for SAN networks. Up to 16 high-capacity SATA II/III HDDs are supported while the four GbE iSCSI data ports provide fast data throughput, ideal for digital video applications, data storage, recovery/backup, and surveillance…etc.

Easy LCD Setting and Remote Management and Monitoring
Netstor NR330A-IP4 provides three ways to configure and manage the iSCSI enclosure. The three approaches include the LCD with its control panel, the web GUI, and through console port of iSCSI enclosure for management and configuration. Both the configuration of IP addresses of iSCSI data ports and RAID settings can be achieved by one of the above three ways. In addition, other important functions such as system setting, mail/notification setting, hardware monitor, drives’ S.M.A.R.T. info, system info, and event log can all be accessed through the web GUI remotely on any host from the network.

Perfect, Complete Hardware Monitor Audibly, Visually, and Remotely
When redundant power supply fails, fan failure or over-temperature occurs within Netstor NR330A-IP4, users or administrators will be informed of the incident both audibly and visually as well as remotely by the front status LED, the inside buzzer alarm, and e-mail notification. While one of the fans fails, it is easy to know which one breaks down as shown from the web GUI, so the issue can be solved in a short time to remain best ventilation. When administrator is notified of the failure of redundant power supply, all he/she needs to do is to hot-swap the failure power supply without system down time.

Enclosure x 1
HDD Tray x 16
Power Cord x 2
Manual CD-ROM x1
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2



Model No. Description
NR330A-IP4 3U 16 bay iSCSI(Host) to SATA(Disk) Raid Subsystem, Quad Gigabit Ports, Black Color, 400W Redundant Power Supply
ANNA920C0300 Spare Black Color Tray with Retail Package
