• EOL (End-of-life)
  • Supports SATA (3Gbps)
  • Aluminum housing, anodized surface, benefits for cooling and durability
  • Port Multiplier for five removable SATA drive trays
  • Built-in fans for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm.

NA710C 5-Bay eSATA Port Multiplier Enclosure Tower Product Description

Host Interface SATA II (one eSATA connector)
HDD Interface SATA I/II
Data Transfer Rate SATA 1.5/3 Gbps
LED Display White – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring POWER on LED – white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Material Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face
Dimension (D):23.15cm (W):15.68cm (H):20.97cm
Power Supply 220W (High reliability of IPC form-factor)
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling 60 x 60 x 15 mm Cooling Fan
System Requirement SiI3132 PCI-Express/ExpressCard or SiI3124 PCI-X or any Host Bus Adapter mentioned with Port Multiplier function
O.S. support OS Independent

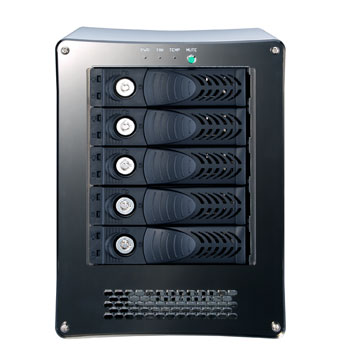

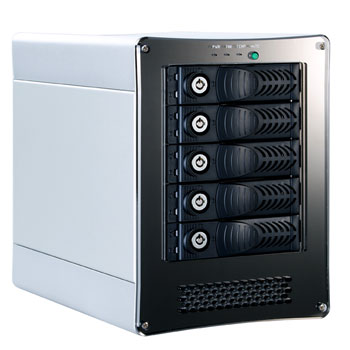

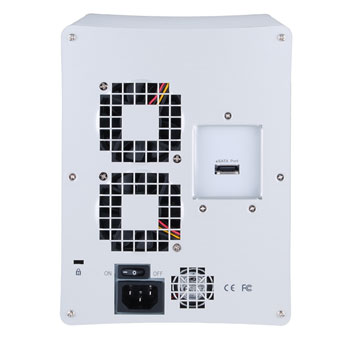

NA710C is a five Bay Hot-Swap Serial ATA (SATA) Port Multiplier Enclosure. It provides users a low cost and high performance external data backup solution. The convenience of eSATA Port Multipleir 1 cable connectivity to 5 SATA disks solution brings users an easy installation and a fast data transmission experience.

Enclosure x 1
HDD Tray x 5
eSATA Cable x 1
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 20
Key for HDD tray x 2
