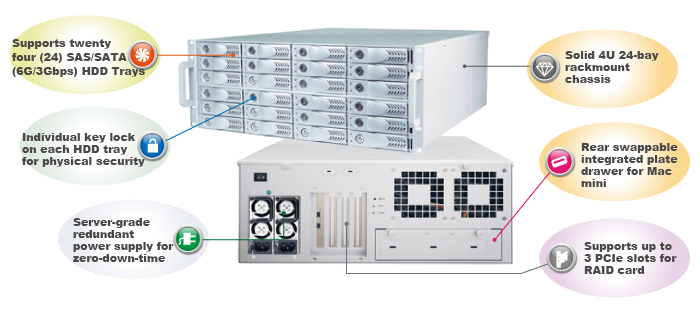

Features

  • Thunderbolt™2 interface with 20Gbps of throughput in both channels
  • Solid 4U 24-bay rackmount chassis
  • Rear swappable integrated plate drawer for Mac mini
  • Supports twenty four (24) SAS/SATA (6G/3Gbps) HDD Trays
  • Supports up to 3 PCIe slots for RAID card, Fibre Channel HBA/10G networking card, and any standard PCIe add-on cards with Thunderbotl Aware’s Driver.
  • Individual key lock on each HDD tray for physical security
  • Server-grade redundant power supply for zero-down-time

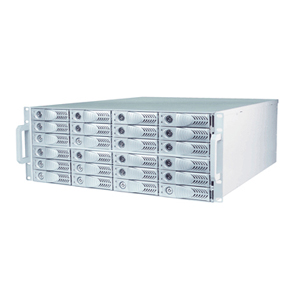

NA381TB 24 Bay Thunderbolt 2 Storage 4U and PCIe Expansion Product Description

Host Interface Thunderbolt 2 (Dual Port for Daisy Chain)
Data Transfer Rate 20Gbps Bi-directional
HDD Interface SAS/SATA (6G/3Gbps)
No. of Disk(s) Up to 24 (For 3.5″ HDD & sold separately)
RAID Levels Requires a RAID card with internal 24 port and Thunderbolt driver(RAID card sold separately)
PCIe Slot Expansion Two PCIe2.0 x8 and One PCIe2.0 x4
Thunderbolt Expansion Up to Six Thunderbolt devices
LED Display for Enclosure Fan normal – green; Fan failure – red
Temp. normal – green; Temp. over 50°C – red
LED Display for each Tray White – Power On Indicator
Flash Blue – HDD Accessing Indicator
Red – HDD Failure Indicator
Alarm Mutable buzzer beeping for fan failure or over temperature occurs
Material Heavy-duty cold-rolled steel Housing
Power Supply 650W Redundant PSU (Server-grade)
Input: 90-230 VAC/50-60 HZ
Output: +5V and +12V
Dimension 559(D) x 482(W) x 176(H) mm
22 (D) x 19 (W) x 6.93 (H) inch
Cooling Five 90 x90 x25 mm
System Support New Mac Pro,Mac mini, Mac mini Server, MBP, iMac with a Thunderbolt port
O.S. Support Mac OS X 10.6.8/ 10.7.x/ 10.8.x/ Mavericks
PCIe card Driver Request Third-party PCIe card should support Mac OS with Thunderbolt aware’s driver
PCIe card  Size Available Card length within 305mm and full height PCIe card
Storage Temperature 5 to 40°C  (41 to 104°F)
Operating Temperature -10 to 50°C  (-14 to 122°F)
Relative Humidity 20 to 80% (non-condensing)
 1378714452

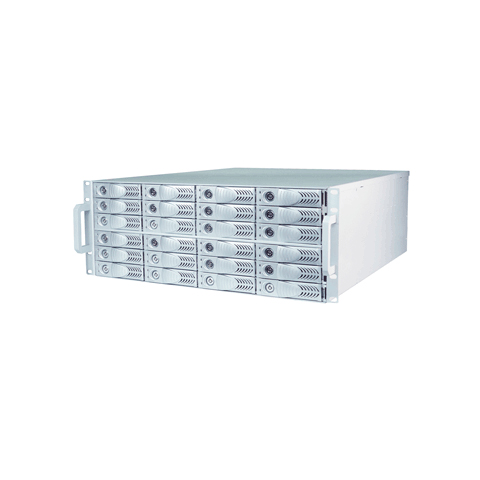

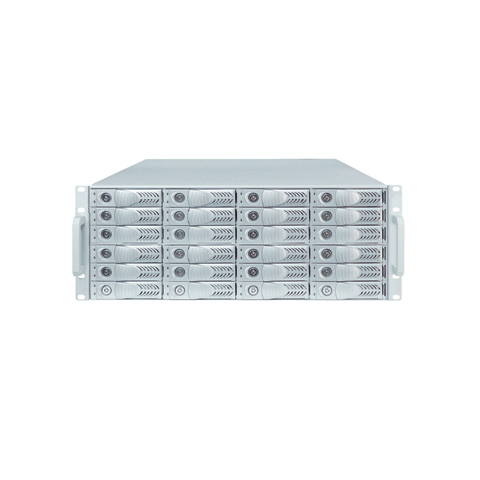

4U, 24 bay Thunderbolt 2 Storage and PCIe Expansion

The Thunderbolt 2 NA381TB enclosure turns the Mac mini into an enterprise server with the capacity for nearly 100TB of storage. Designed to fit for high-speed SAN architecture, this chassis also features 3 PCIe slots for expansion. Preferred RAID controller cards can be installed to make the available storage RAID ready.



1a



















The Mac Mini Becomes an Enterprise Server

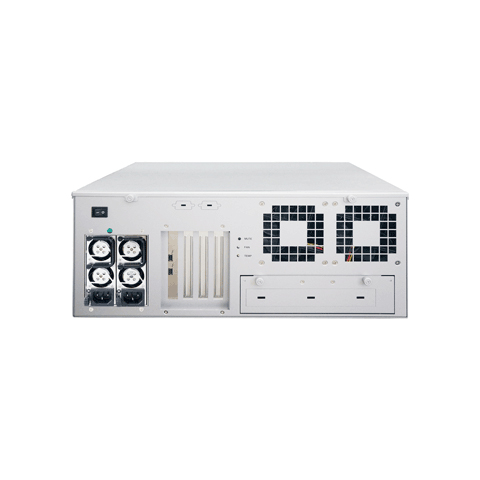

The NA381TB is equipped with two Thunderbolt 2 ports, each capable of daisy-chaining with up to 6 Thunderbolt™ devices including a display for extra quick 20Gbps bi-directional I/O performance. Built with an easily removable rear host plate, the Mac mini can be integrated to NA381TB conveniently with existing Mac I/O.

Optimized for Space and Cooling
The NA381TB’s design allows for optimal airflow ventilation to keep the Mac mini cool and applications running smoothly without compromising effective storage design.

Host Support
Mac  MAC •  Mac Pro 2013, Mac mini, Mac mini Server, MBP, iMac
with a Thunderbolt port (Mac OS X 10.6.8+)
RAID Card Support
Areca   Areca • ARC-1882ix-24
Audio Card Support
 RME    RME • HDSPe MADI        • HDSPe AIO
• HDSPe AES          • HDSPe RayDAT
 Universal Audio    Universal Audio • UAD-2 DUO         • UAD-2 QUAD
(version 6.3.1+)
Video Card Support
 Black Magic Design  BlackMagic • DeckLink Studio   • DeckLink Quad   • Intensity Pro
• DeckLink HD 3D   • DeckLink 4K (version 9.5+)
 Matrox  Matrox • Mojito MAX
 AJA  AJA • Kona 3G            • Kona LHi       • Kona LHe Plus
(version 10.3+)
 Red RED • RED ROCKET™
10G Networking Card
Myricom • 10G-PCIE-8B-2C  • 10G-PCIE-8B-2S ?10G-PCIE-8B-C
• 10G-PCIE-8B-S    • 10G-PCIE2-8B2-2C
• 10G-PCIE2-8B2-2S  (version v1.3.1+)
 ATTO • Fast Frame NS11  • Fast Frame NS12
• Fast Frame NS14

Enclosure x 1
HDD Tray x 24 (Installed)
Thunderbolt cable x 1 (2 meter)
Manual CD-ROM x1
Hard Disk Drive mounting screw x 96
Key for HDD tray x 2
Power Cord x 2

Model No. Description

NA381TB

4U 24 bay Thunderbolt to Combo SAS/SATA JBOD and PCIe Expansion Chassis, with redundant 650W Power Supply, One Thunderbolt 2 meter cable
BARC1882IX24 Areca’s ARC-1882ix-24, internal 24 port SAS/SATA RAID Adapter, Dual Core RAID-on-Chip 800MHz processor, Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD, with Thunderbolt aware driver

We would like to check the compatibility between the NA381TB and the ARC-1264IL-16 RAID Controller card. We already have the RAID card on hand and we understand that it’s a 16 channel card while the enclosure has 24 drive bays.

ARC-1264IL-16 RAID card is compatible with NA381TB (24-bay Thunderbolt 2 JBOD) and work with Thunderbolt-enabled Mac. Please take note that ARC-1264IL-16 RAID card can only support 16 bays in the Netstor 4U 24-bay NA381TB enclosure. Please go to http://www.areca.com.tw/support/s_macos/macos.htm and download/ install the latest MRAID program on your Thunderbolt-enabled Mac in order for the ARC-1264IL-16 RAID card to work with NA381TB and Mac OS X.

What is the read/write benchmark information for either of these two units? What is the normal life span of using 2.5" drives in a RAID environment?.

We don’t have these information yet. But performance and life span will be different when using different host RAID card.

Is it possible to use this storage array on a Linux Server?

In order to use this on a Linux Server, you must change the Thunderbolt interface to external PCIe interface as the attached external PCIe storage.

You need to purchase the kits as the following three lists:

NA960AG3- H for Host

NA960AG3- T Installed for NA381TB enclosure to replace Thunderbolt card.

AAML6815- PCIe cable for connection between NA960AG3-H and NA960AG3-T

We use our NA381TB for data recovery and we have it's disks out of the enclosure. Since all the disks are numbered and the disks are running RAID 6, where are disk 1 and 2 supposed to be place in the order?

For the design of Thunderbolt 2 NA381TB storage, it allows users to choose their own RAID card to be installed in NA381TB storage enclosure for work.

As Thunderbolt 2 NA381TB is a 24-bay storage, users can choose the RAID card with six SFF-8087 mini-SAS ports such as HighPoint RocketRAID 2760A card, and Areca ARC-1882-ix-24 card…etc. for usage with the Netstor enclosure.

The disk order will be related to the RAID card that is chosen to be used with the NA381TB. There are six SFF-8087 mini-SAS ports on the RAID card. By each brand, model of RAID card, the order of the six SFF-8087 mini-SAS ports on the RAID card is different. For some brand, model of RAID card, the order is disk 1 through disk 24 from bottom SFF-8087 port to top SFF-8087 port while for some other brand, model of RAID card, the order is disk 1 ~ disk 24 from top SFF-8087 port to bottom SFF-8087 port. Therefore, now we have to verify which brand, model of RAID card the user uses inside his Thunderbolt 2 NA381TB storage.

Does the ARC-188ix-24-8NC work on the NA381TB3?

The ARC-1883ix-24 is usuable in the NA381TB3 but the internal cable should be changed to SFF8087 (for backplane) to SFF8643 (for RAID card).
