Features

  • Rugged 4U 24-Bay Rackmount Chassis
  • Host interface up to 40Gbps bandwidth
  • Supports Twenty(24) SAS/SATA(3Gbps/6Gbps) drives
  • Expands up to 3* PCI-Express slots for Raid Card and any standard add-on cards
  • Individual Key lock of each HDD tray for physical security
  • Environmental monitoring for FAN failure and over temperature
  • Server-grade redundant power supply for zero-down-time

NA380A-R 4U-24 Bay SAS/SATA JBOD With PCIe Slot Expander Product Description

Host Interface External PCI-Express 2.0 x8
HDD Interface SAS/SATA 3.0/6.0 Gpbs
No. of Disk(s) up to 24
Data Transfer Rate Up to 40Gbps
PCI-e Slot Expansion Two PCIe 2.0 x8(One slot is available for PCIe x16 card)
One PCIe 2.0 x4
Storage Expansion NA380A can be daisy chain together as many as the Raid Control Card can be recognised by Host PC or Server.
LED Display(Tray) White – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring FAN normal – Green; fail – Red (too slow rpm or stop)
TEMP normal – Green; over 50°C – Red
Dimension 55.9(D) x 48.2(W) x 17.6(H) cm
22 (D) x 19 (W) x 6.93 (H) inch
Material Heavy-duty cold-rolled steel
Power Supply 650W (2+1) Redundant PSU
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling Three 90x90x25 mm and two 60x60x25 mm cooling fans
O.S. support OS Independent (OS will be provided from the PCI-e Raid Control card manufacturer)

NA380A

NA380A-R is the most high density of PCI Express x8(Host) to SAS/SATA 3/6 Gbps(Disk) 4U-24 bay storage product line from Netstor. It’s not only an external storage capacity expansion for up to 72TB(installed 3TB HDD) but also features up to PCI-Express slots expander to solve the PCI-e slot shortage problem in server or workstation while you want to expand the big sotrage capacity as well as the PCI-e slots.

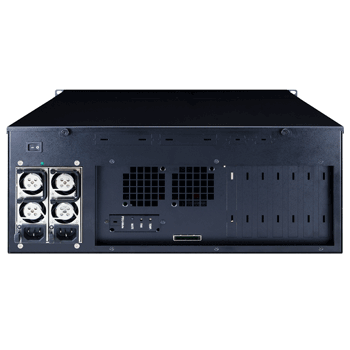

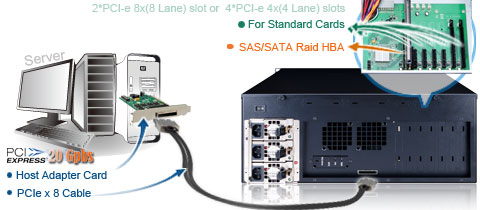

The chassis pacakge is including a PCI-Express host adaptor and an external PCIe 2.0 x8 cable for you to convert and connect the host system internal PCI-E slot becoming external port into NA380A-R and it’s designed to provide up to Seven(7) PCI-e slots for plugging any standard SAS/SATA PCI-e Raid card to configue the NA380A-R to be Raid Subsystem and any PCI-e add-on card while PCI-e slot is shortage in the existing server or workstation. It means NA380A-R only requests a PCI-e slot from host server but provides a mass stoage capacity and 7 more PCI-e slots to customer.
Host Requirement and Cable length available

  • Apple Mac Pro or PC workstation with one available PCI-e x8 slot
  • External PCI-e cable available length – up to 5 Meter

Validated SAS/SATA HBA

NA380A Adaptec RAID 52445 NA380A MegaRAID SAS 9280-24i4e
NA380A ARC-1880ix-24
ARC-1882ix-24
NA380A RocketRAID 2760A

Enclosure x 1
HDD Tray x 24
PCI-e 8x Host Adaptor with standard and low profile host bracket x 1
PCI-e 8x cable (1.5 meter) x 1
Internal miniSAS(SFF8087) to miniSAS(SFF8087), 30cm x6
Power Cord x3
Hard Disk Drive mounting screw x 96
Key for HDD tray x 2
