Features

  • Supports SAS/SATA (3/6 Gbps)
  • 4* miniSAS interface for easy connection(Direct connection w/o SAS Expander)

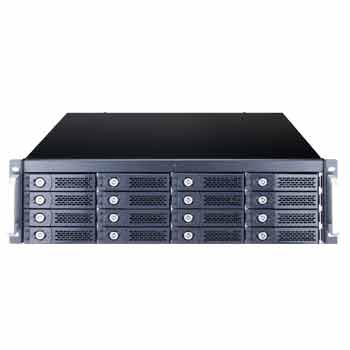

  • Backplane design for up to 16 removable SAS/SATA drive trays
  • Fan cooler for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm

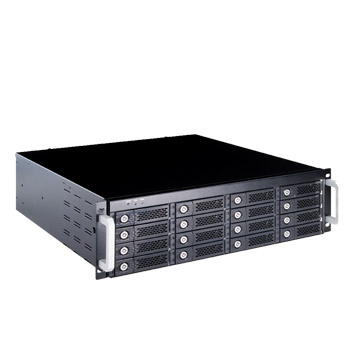

NA331A 3U 16 bay SAS to SAS/SATA Rackmount JBOD Chassis Product Description

Host Interface SAS/SATA 3/6 Gbps (Four miniSAS connector)
HDD Interface SAS/SATA 3.0/6.0 Gbps
Data Transfer Rate SAS/ SATA 3/6 Gbps
LED Display White – Power on indicator
Blue – Busy (HDD Accessing) indicator
LED Display for Environmental Monitoring FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
Dimension (W):48.2 cm (H):13.1 cm (D):45.6 cm
Material Heavy-duty cold-rolled steel
Power Supply 400W Single PSU ( Can be changed to mini Redundant)
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling Three set of 8 x 8 x 2.5 cm Hot-Swappable Fans
O.S. support OS Independent

NA331A

Netstor NA331A is an external 3U-16 Bay Hot-Swap SAS/SATA rackmount Enclosure. It provides users a most big storage capacity expansion solution for up to 16 SAS or SATA HDD and high performance external data storage solution for HD of 1080i Video Editing or any high resolution video platform.

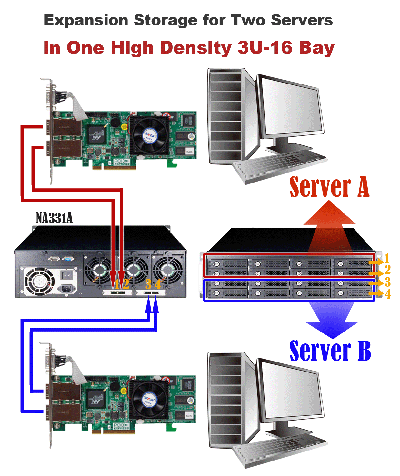

This 3U 16 Bay external SAS/SATA JBOD is designed with 4 high  bandwidth of External miniSAS(SFF8088) interface and it can be connection with different host servers to configure the chassis to Raid subsystem while connection with Host Raid Card(s) that brings users an easy installation and enjoy fast data transmission experience.

Enclosure x 1
HDD Tray x 16
mini SAS Cable x 4 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2

AAMMM1
miniSAS(SFF-8088) to miniSAS(SFF-8088) cable, 1MNA331A
AAMMM2
miniSAS(SFF-8088) to miniSAS(SFF-8088) cable, 2MNA331A USB2
