Features
  • Chassis Height: 2U
  • Dimensions: 19″ x 3.5″ x 25.6″
  • Dimensions(mm): 483 x 88 x 650
  • EIA RS-310C 19″ Rackmount Standard
  • 25.6″ deep 2U chassis
  • Support 12″ x 13″ EATX and ATX/ micro ATX motherboard
  • 4 x 5.25″ & 2 x 3.5″HDD & 1 x 3.5″FDD

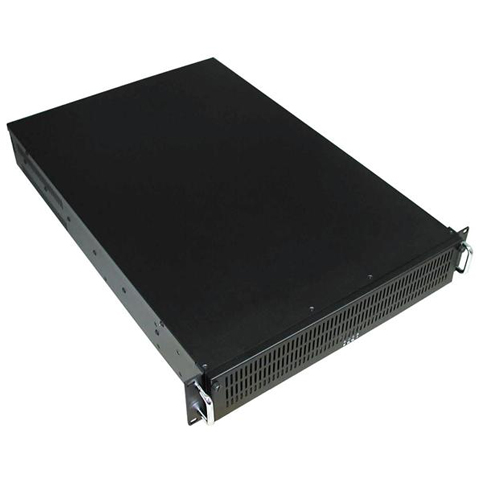

EJ-2U657-C 2U Rackmount Case Product Description

The EJ-2U657-C 2U Rackmount Case offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ EATX and smaller form factor motherboard. The EJ-2U657-C also features a quality fan filter and 4 x 80 cm cooling fan for optimum ventilation of the system.

Standard EIA RS-310C 19″ Rackmount Standard
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black (Standard), Beige or Custom
Drive Bays 4 x 5.25″ & 2 x 3.5″ HDD & 1 x 3.5″ FDD or 6 Storage Module & 2 x 3.5″ HDD & 1 x 3.5″ FDD
Power Supply 2U Single up to 510W or Redundant up to 400W ATX P/S (Rear Installation) Max. Depth 300 mm
Cooling Units 4 x (80 mm = 42.5 CFM ea.)
Connector Port (front) 2 x USB Ports
Buttons Power ON/OFF Momentary (Dimple), System Reset
Motherboards Support 12″ x 13″ EATX/ ATX
Front Door(s) Single Door With 2 Thumbscrew and Removeable Door
Dimensions (W x H x D) 483 x 88 x 650 mm (19″ x 3.5″ x 25.6″)
Weight 14.9 kgs / 32.9 lbs
Carton Size 58.8 x 25.5 x 82.5 (23.2″ x 10″ x 32.5″)
Humidity 5% – 95% Non-condensing
