Features
  • Chassis Height: 2U
  • Dimensions: 19.0″ x 3.5″ x 22.1″
  • Dimensions(mm): 483 x 88 x 560
  • EIA RS-310C 19″ Rackmount Standard
  • 22.1″ deep 2U chassis
  • Support 12″ x 10.5″ ATX/ micro ATX motherboard
  • 2 x 5.25″ & 1 x 3.5″ FDD & 4 x 3.5″ HDD Hotswap Trays

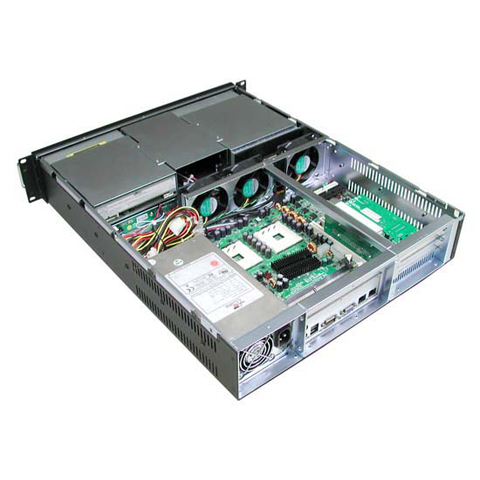

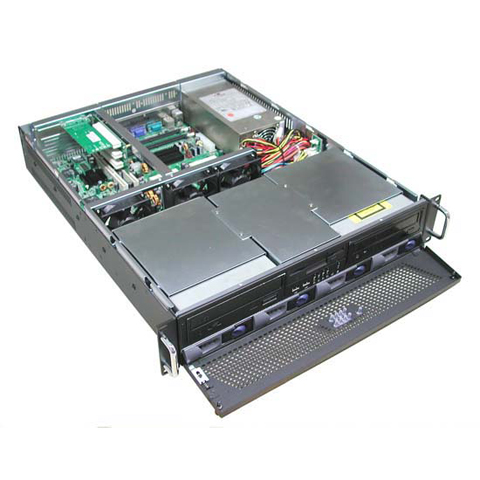

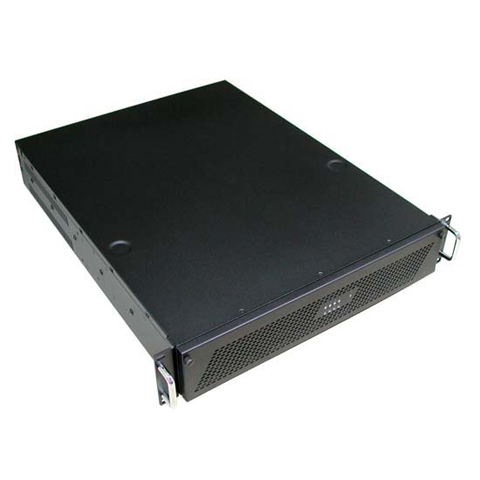

EJ-2U564 2U Rackmount Chassis Product Description

The EJ-2U564 2U rackmount chassis offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 10.5″ ATX and smaller form factor motherboard. The EJ-2U564 also features a quality fan filter and 3 x 80 cm cooling fan for optimum ventilation of the system.

Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black (Standard) or Custom
System Boards Pentium D, Dual Xeon, AMD 64 X2, Dual Opteron
Motherboard Size Support ATX M/B (Max. to 12″ x 10.5″ CEB) SSI EEB 3.0
Drive Bays 2 x 5.25″ & 1 x 3.5″ FDD & 4 x 3.5″ Hotswap Trays
Drive Interface SATA2, U320, SATA-Multilane, SAS
Power Supply (Rear Chassis Installation) 2U Single or Redundant ATX Power Supply, w/ Max. Depth 264 mm
Cooling Units 3 x (80 mm = 42.5 CFM ea.) Heavy Duty Ball Bearing Fans
Expansion Slot 3 x Horizontal Slots
7 x Low Profile PCI Slots
Riser Card Optional
Connector Port (front) 2 x USB Ports
Indicators LEDs for Power ON/OFF, 4 x HDD Activity, Fan, Temperature, LAN
Buttons Power ON/OFF Momentary (Pushbutton), System Reset, Buzzer Reset
Crossbar PCI Spanner Bar for Riser Card
Front Door(s) Removable Single Door with 2 x Thumbscrew
Dimensions
(W x H x D)
483 x 88 x 560 mm (19.0″ x 3.5″ x 22.1″)
Weight 13.9 kgs / 30.7 lbs
Cu. ft. 3.3
Carton Size 57.0 x 22.0 x 73.5 (22.4″ x 8.7″ x 28.9″)
Humidity 5% – 95% Non-condensing
Product Applications Multipurpose Server
Chassis Height 2U
