Features

  • Chassis Height: 6U
  • Dimensions: 19″ x 10.4″x 26.2″
  • EIA RS-310C 19″ Rackmount Standard
  • 26.2″ deep 6U chassis
  • Support 13″ x 16″ ATX motherboard
  • 36x hotswap 3.5″ HDD carrier/tray, 2x Internal 3.5″ HDD

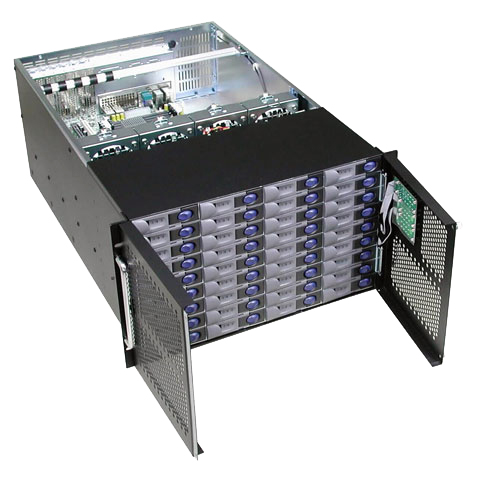

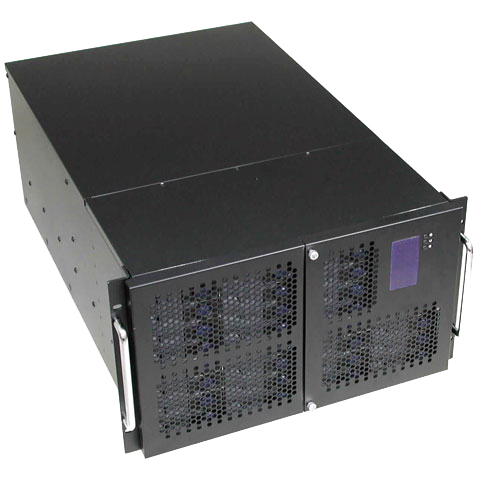

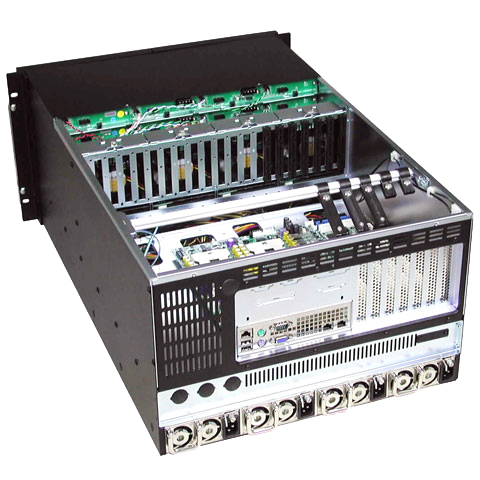

EJ-6U6638-C 6U Rackmount Chassis Product Description

The EJ-6U6638-C, a 6U rackmount industrial chassis, offers great expand-ability and cooling capacity for your server computer. It supports a 13″ x 16″ ATX and smaller form factor motherboard. The EJ-6U6638-C also features a quality fan filter as well as 2x 120mm and 5x 60mm heavy duty ball bearing cooling fan for optimum ventilation of the system.

Drive Bays 36 x hotswap 3.5″ HDD carrier/tray, 2 x Internal 3.5″ HDD (optional: 4x extra hotswap drive carriers OR 2x 5.25″ Open from the rear)
Dimensions 19″ x 10.4″x 26.2″
Power Supply (Rear Chassis Installation) 1U Redundant Power Supply Max Depth 300mm
Cooling Units 2x (120mm = 90CFM ea.),
5x (60mm = 23.5CFM ea.) Heavy Duty Ball Bearing Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Motherboard Size Support EATX M/B (Max. to 13 ” x 16″) with Removeable drawer
System Board Pentium 4, Dual Xeon, AMD 64, Dual Opteron, Quad Opteron
Color Black (Standard), Beige or Custom
Product Applications NAS, SAN, File Server
Indicators LEDs for Power, 36x HDD Activity, 3x LAN, Fan Failure, Temperature Warning
Buttons Power On/Off, System Reset, Fan Failure Reset, Alarm Reset Dimple Buttons
