Features

  • Chassis Height: 4U
  • Dimensions: 19″ x 7.0″ x 25.6″
  • Dimensions(mm): 483(W) x 177(H) x 650(D)
  • EIA RS-310C 19″ Rackmount Standard
  • 25.6″ deep 4U chassis
  • Support 12″ x 13″ ATX motherboard
  • 1 x 5.25″ Drive Bay + 1 x Slim CDROM + 1 x Slim FDD + 14 x Hot Swap PATA/SATA/ULTRA 320 Drive Tray

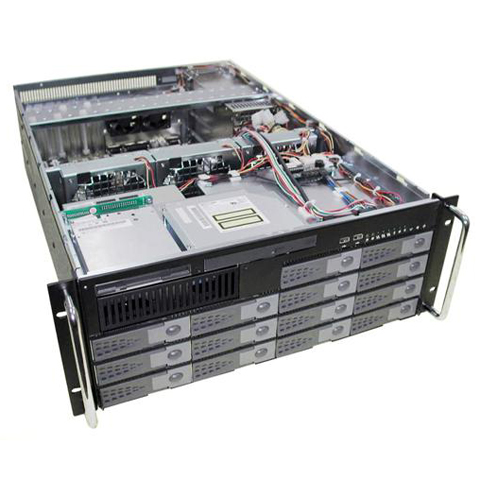

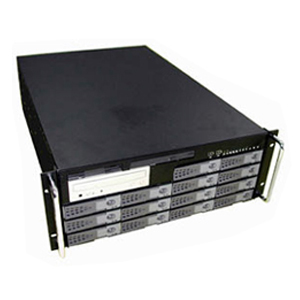

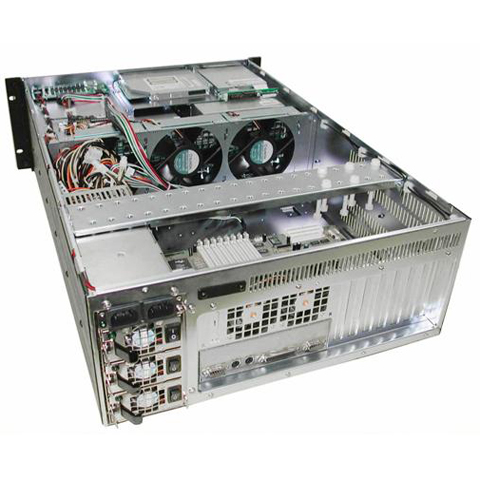

4U Rackmount Chassis EJ-4U6517-C Product Description

The 4U Rackmount Chassis EJ-4U6517-C offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ ATX and smaller form factor motherboard. The EJ-4U6517-C also features a quality fan filter as well as 1 x 60mm and 4 x 90mm cooling fans for optimum ventilation of the system.

Drive Bays 1 x 5.25″ Drive Bay, 1 x Slim CDROM + 1 x Slim FDD + 14 x Hot Swap PATA/SATA/ULTRA 320 Drive Tray
Dimensions 483(W) x 177(H) x 650(D) mm (19″ x 7.0″ x 25.6″)
Power Supply (Rear Chassis Installation) ATX Single or Redundant Power with max. 300mm Depth (Optional)
Cooling Units 4 x (90mm = 51 CFM) + 1 x (60mm = 23.5 CFM) Heavy Duty Ball Bearing Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black, Beige
System Boards Dual Xeon, Dual Opteron, Pentium 4 Dual Pentium III based boards
Motherboard Size Support ATX M/B (Max. to 12″ x 13″ EEB)
Expansion Slot 7 x Full Length PCI Slots, 2 x USB Ports (Front)
Thermal Management Card Installed
Indicators LEDs for Power ON/OFF, 2 x HDD, Fan Temperature, & 3 x LAN Activity
Buttons Power On/Off & System Reset
Door(s) 1 x Front Door with 2 x Thumbscrew (Removeable)
Weight 28 kgs / 61.7 lbs
Cu. ft. 6.1
Carton Size 81.8 x 59.4 x 35 (32.2″ x 23.4″ x 13.8″)
Product Application Web Server, Video Capture, Surveillance System, RAID Server, File Server, SAN NAS, Broadcasting Server
