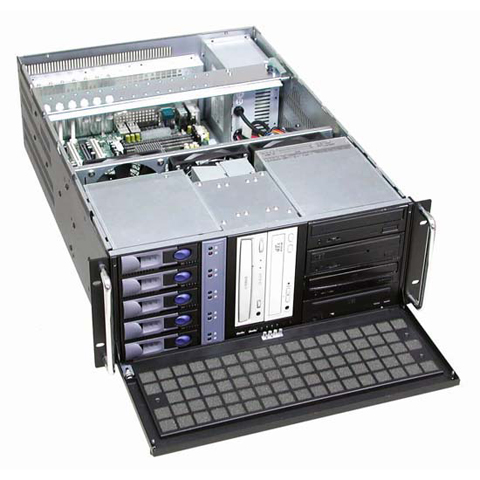

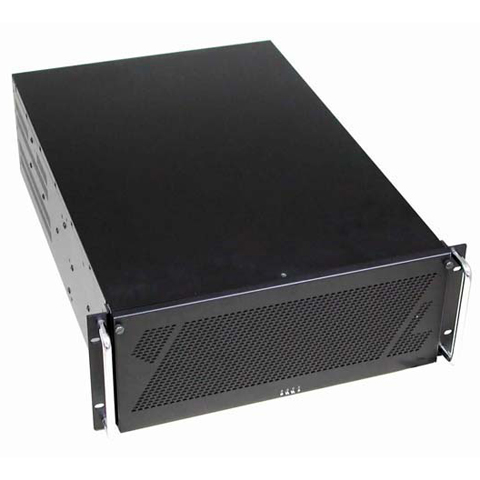

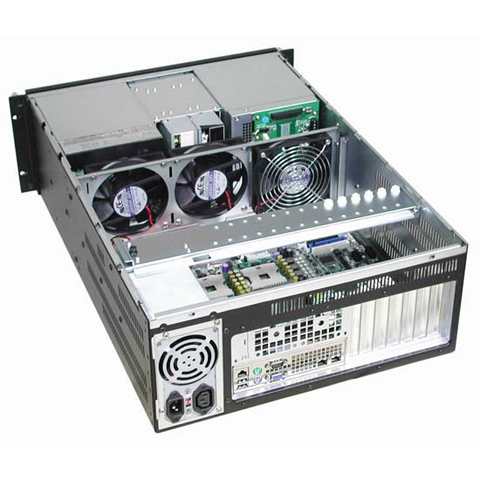

4U Rackmount Chassis EJ-4U6210-C Product Description
The 4U Rackmount Chassis EJ-4U6210-C offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 13″ ATX and smaller form factor motherboard. The EJ-4U6210-C also features a quality fan filter as well as 3x 120mm and 2x 60mm cooling fan for optimum ventilation of the system.
Drive Bays | 10 x 5.25″ |
---|---|
Dimensions | 19″ x 7.0″ x 24.5″ |
Power Supply | (Rear Chassis Installation) Single or Mini Redundant Power upto 600Watts Max Depth 300mm |
Cooling Units | 3x (120mm = 90CFM ea.) and 2x (60mm = 23.5CFM ea.) Optional Heavy Duty Ball Bearing Fans |
Construction | Heavy Duty Cold Rolled Electroplated Steel |
Motherboard Size | Support ATX M/B (Max. 12″ x 13″ EEB) |
System Board | Pentium 4, Dual Pentium III based boards |
Color | Black (Standard), Beige or Custom |
Expansion Slots | 7 x Vertical Full Length PCI Slots |
Weight | 19.1 kgs / 42.1 lbs |
Product Applications | DVR, Disk to Disk Duplicator, Decoder, Encoder |
Indicators | LED for Power & HDD Activity |
Buttons | Power On/Off, System Reset, & Buzzer Reset |
Humidity: | 5% – 95% Non-condensing |
