Features

  • Chassis Height: 4U
  • Dimensions: 19.0″ x 7.0″ x 22.6″
  • Dimensions(mm): 483 x 177 x 573
  • EIA RS-310C 19″ Rackmount Standard
  • 22.6″ deep 4U chassis
  • Support 12″ x 10.5″ ATX motherboard
  • 6x CD-ROM + 1x 3.5″ HDD + 1x 3.5″ FDD

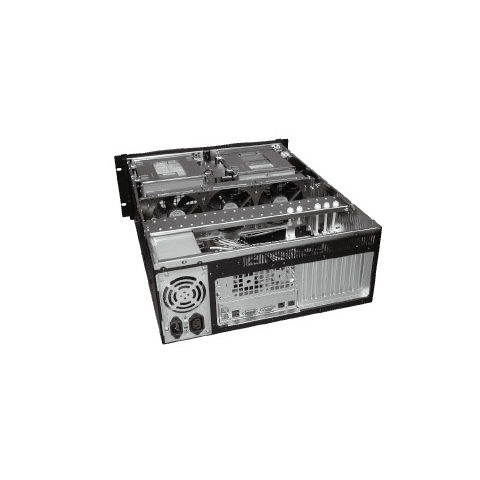

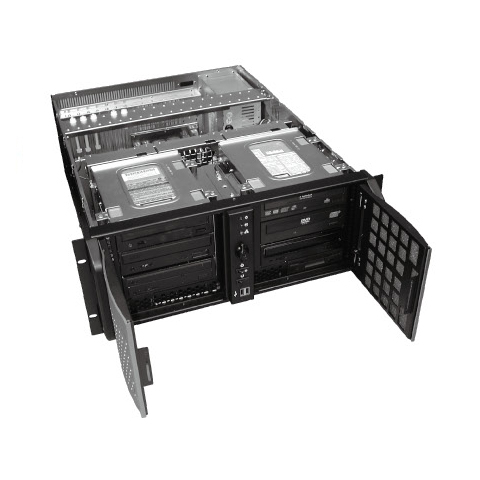

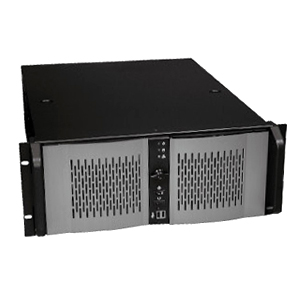

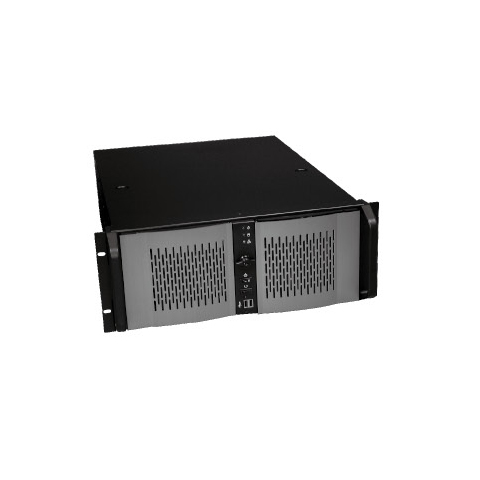

4U Rackmount Chassis EJ-4U5708 Product Description

The 4U Rackmount Chassis EJ-4U5708 offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 10.5″ ATX and smaller form factor motherboard. The EJ-4U5708 also features a quality fan filter and 3x 120mm cooling fan for optimum ventilation of the system.

Max. Board Size CEB (12″ x 10.5″)
System Board Type Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon
Standard EIA RS-310C 19″ Rackmount Standard
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black (Standard), Beige or Custom
Drive Bays 6x CD-ROM & 1x 3.5″HDD & 1x 3.5″FDD
Power Supply Single PS2 up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 200mm
Cooling Units 3 x (120mm = 90CFM ea.) Fans
Expansion Slot 7 slots
Connector Port (front) 2 x USB
Buttons Power ON/OFF Momentary (Pushbutton), System Reset
Front Door(s) Two Doors With Keylock
Dimensions(W x H x D) 483 x 177 x 573mm (19.0″ x 7.0″ x 22.6″)
Weight 19.8 kgs / 43.7 lbs
Cu. ft. 5.2
Carton Size 75.0 x 33.1 x 59.0 (29.5″ x 13.0″ x 23.2″)
Humidity 5% – 95% Non-condensing
