Features

  • Chassis Height: 4U
  • Dimensions: 19(w) x 7(h) x 20.1(d)
  • Dimensions(mm): 482.6(w) x 177.8(h) x 510.54
  • 20.1″ deep 4U chassis
  • Drive bays: 3 x 5.25″
  • Power supply: Rear installed Single 250-400W P/S2 or Mini Redundant 230-400W Power Supply.

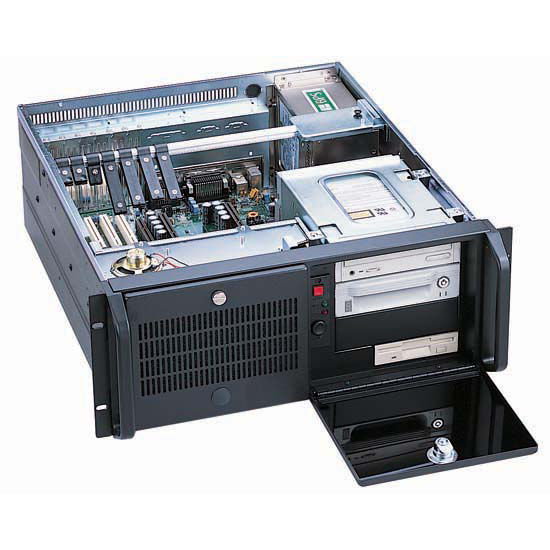

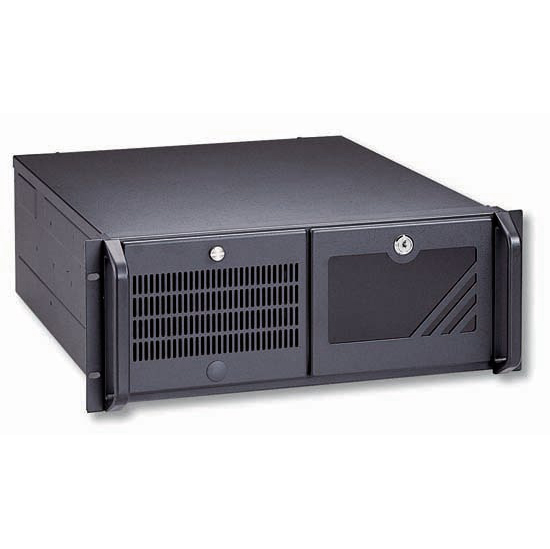

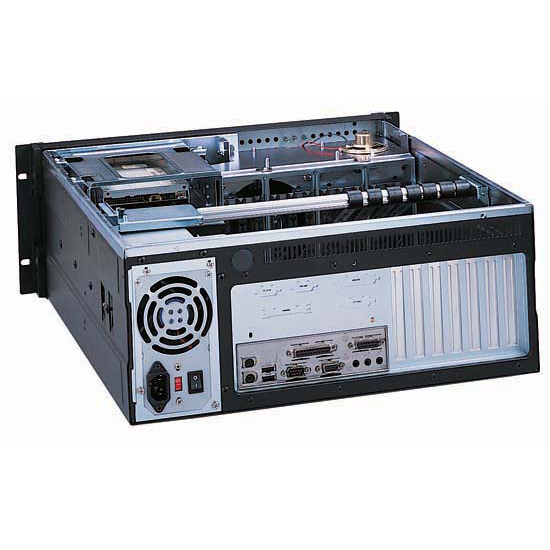

4U Rackmount Chassis EJ-4U514 Product Description

The 4U Rackmount Chassis EJ-4U514 offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 9.6″ ATX and smaller form factor motherboard. The EJ-4U514 also features a quality fan filter and 1 x 12 cm cooling fan for optimum ventilation of the system.

Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black, Beige, or Custom Design
System Boards: Dual Xeon, Pentium 4, Dual Pentium III based boards
Motherboard Size: Support ATX M/B (Max. 12″ x 9.6″ ATX/Micro ATX); or
Support 14/15-slot Passive Backplane board
Drive Bays: 3 x 5.25″ + 1 x 3.5″ FDD (Open), Optional 1 x 3.5″ HDD (Hidden)
Power Supply: (Rear Chassis Installation) Single 250-460W P/S2 or Mini Redundant 230-460W Power Supply.
Cooling Units: 1 x 12 cm Ball Bearing Fan with 90 CFM/Each. Optonal 2nd fan available.
Expansion Slot: 7-Slot, or 14-Slot
Indicators: LED for Power & HDD Activity
Buttons: Power On/Off & System Reset
Dimensions: 480(W) x 177H) x 510(D) mm (19” x 7” x 20.1”)
Weight: 19 kg / 41.8 lbs
Cu. ft.: 5.04
Carton Size: 81.8 x 59.4 x 35 (32.2″ x 23.4″ x 13.8″)
Operating Temp Range: 0 °C (32 F) – 50 °C (122 F)
Humidity Range: 5%-95%, Non Condensing
Certification: Meets UL and CE Requirements
Product Applications: Web Server, Firewall Server, Proxy Server, VPN Gateway, High-End Workstation
