Features

  • Chassis Height: 4U
  • Dimensions: 19″ (w) x 7″ (h) x 20.1″ (d)
  • Dimensions(mm): 482.6 (w) x 177.8 (h) x 510.54 (d)
  • EIA RS-310C 19″ Rackmount Standard
  • 20.1″ deep 4U chassis
  • Drive bays: 4x 5.25
  • Power supply: PS/2 Size Single up tp 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 200mm

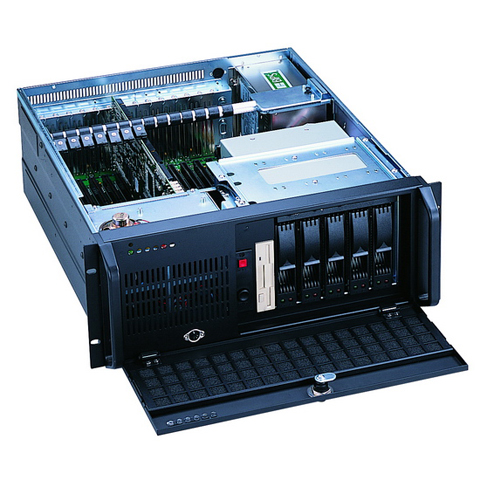

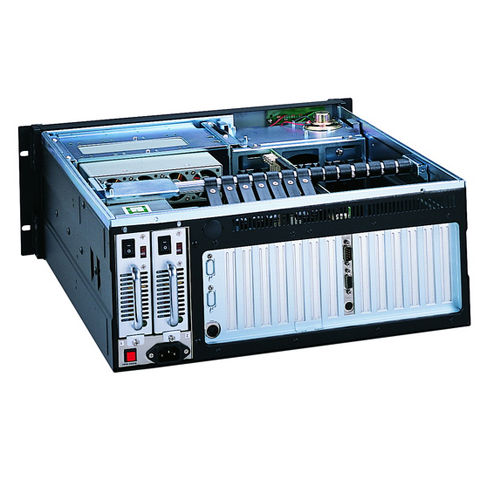

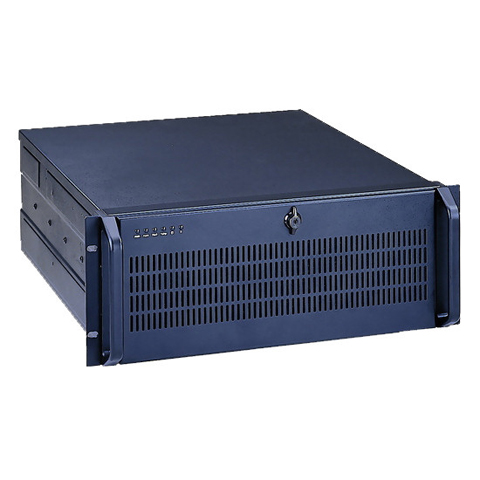

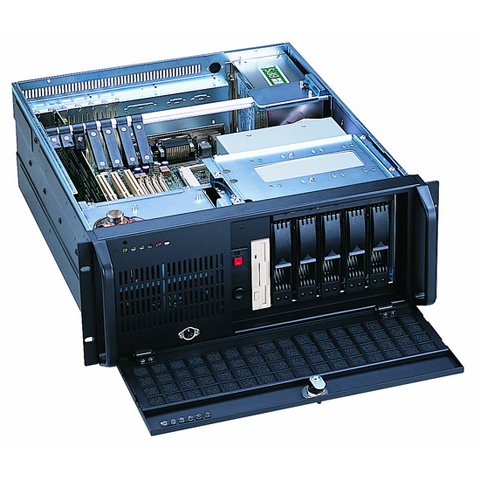

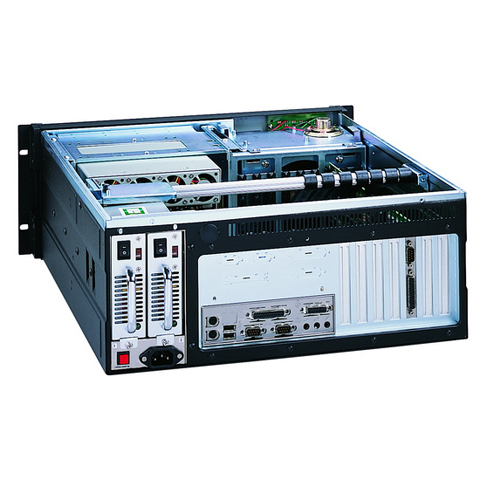

4U Rackmount Case EJ-4U505 Product Description

The 4U Rackmount Case EJ-4U505 offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 9.6″ ATX and smaller form factor motherboard. The EJ-4U505 also features a quality fan filter and 1x 120mm cooling fan for optimum ventilation of the system.

Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
System Boards: C2D, Phenom, X2, X3, X4 Pentium 4, DXeon, Athlon 64, Dual Opteron
Support ATX M/B (Max. to 12″ x 9.6″ ATX/Micro ATX)
Support 14/15-slot Passive Backplane
Drive Capacity: 4 x 5.25″ & 1 x 3.5″ (Vertical) & 1 x 3.5″ HDD (Optional)
Power Supply (Optional): PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 200mm
Connector Port (Front): 1 x PS/2 Port & 2 x USB (Optional) Ports
Cooling: 1 x (120 mm = 108 CFM ea.) Fan
Front Door: Single Door with 1 Thumb Twist Keylock
Air Filter: Inside Front Door (Washable)
Indicators: LEDs for Power ON/OFF, HDD Activity
Flexible Hold Down Bar Designed
Switch: Power ON/OFF Momentary (Pushbutton), System Reset
Dimensions(WxHxD): 483 x 177 x 510 mm (19″ x 7.0″ x 20.1″)
Cuft: 4.9
GW: 17.4 kgs / 38.4 lbs
Carton Size(cm): 59.1 x 34.0 x 68.8 (23.3″ x 13.4″ x 27.1″)
Humidity: 5% – 95% Non-condensing
