Features

  • Chassis Height: 4U
  • Dimensions: 19″ x 7″ x 17.8″
  • Dimensions(mm): 483(W) x 177(H) x 451(D)
  • EIA RS-310C 19″ Rackmount Standard
  • 17.8″ deep 4U chassis
  • Support 12″ x 9.6″ ATX motherboard
  • 3 x 5.25″ + 1 x 3.5″ FDD at bottom opening

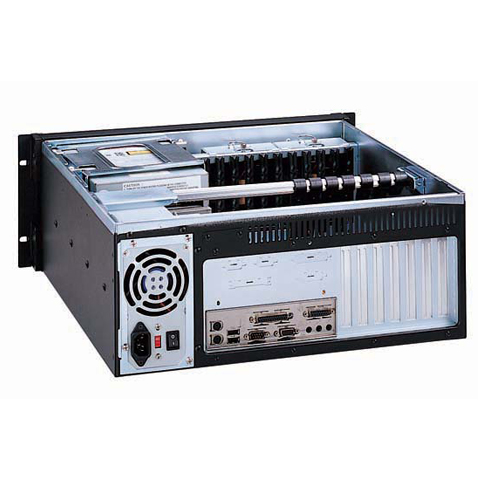

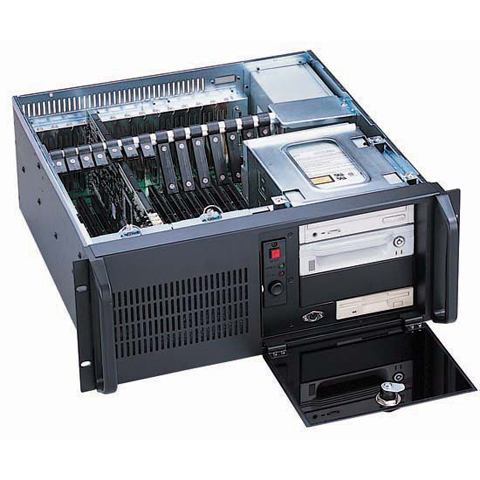

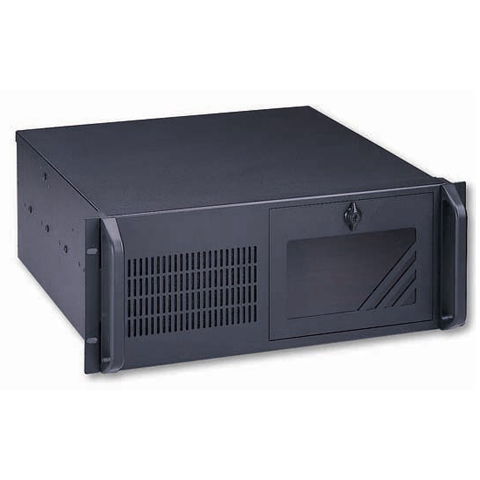

4U Rackmount Case EJ-4U454-C Product Description

The 4U Rackmount Case EJ-4U454-C offers great expand-ability and cooling capacity for your server computer. It supports a 12″ x 9.6″ ATX and smaller form factor motherboard. The EJ-4U454-C also features a quality fan filter and 1x 12cm cooling fan for optimum ventilation of the system.

Drive Bays 3 x 5.25″ + 1 x 3.5″ FDD at bottom opening
Dimensions 483(W) x 177(H) x 451(D) mm (19″ x 7″ x 17.8″)
Power Supply Rear installed Single 250-400W P/S2 or Mini Redundant 230-400W Power Supply
Cooling Units 1 x 12 cm Ball Bearing Fan with 90CFM/Each. Optional 2nd fan available
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black, Beige
System Boards Pentium 4, Pentium III based boards
Board Size Support ATX M/B (Max. 12″ x 9.6″ ATX/Micro ATX) EJ -4U454ATXR or Support 14/15-slot Passive Backplane board – EJ-4U454SR
Expansion Slot 7-Slot for EJ-4U454ATXR, or 14-Slot for EJ-4U454SR
Indicators LED for Power & HDD Activity
Buttons Power On/Off & System Reset
Weight 17 kg / 37.5 lbs
Cu. ft. 5.04
Carton Size 59.1 x 34 x 63.2 (Cm) (23.3″ x 13.4″ x 24.9″)
Product Application Web Server, Firewall Server, Proxy Server, VPN Gateway, High-End Workstation
