Features

  • Chassis Height: 3U
  • Dimensions: 19″ x 5.2 ” x 15.7″
  • Drive Bays: 1x 5.25″, 1x 3.5″, & 2x 3.5″ HDD
  • Power Supply: 2U Single up to 400Watt or 2U Redundant Power Watts

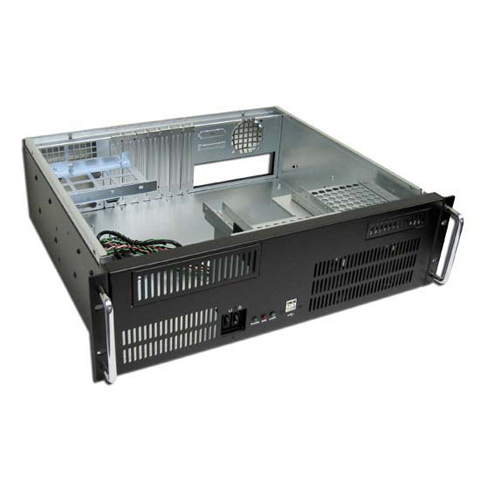

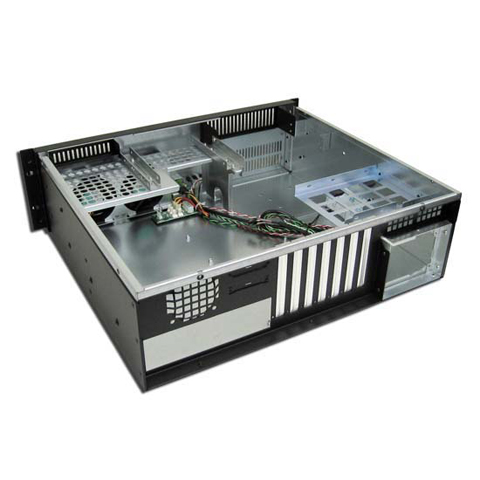

3U Rackmount Case EJ-3U404-C Product Description

The 3U Rackmount Case EJ-3U404-C feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 3U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and three cooling fans so the system stays cool while running at optimal levels. The EJ-3U404-C can be used as a multipurpose server. In addition, the chassis supports Pentium 4, Pentium D, Dual Xeon, AMD 64, and Dual Opteron system boards.

Drive Bays 1x 5.25″, 1x 3.5″, & 2x 3.5″ HDD
Dimensions 19″ x 5.2 ” x 15.7″
Power Supply (Rear Chassis Installation) 2U Single up to 400Watt or 2U Redundant Power Watts up to 400Watts. Max Depth 275mm
Cooling Units 2 x 80mm + 1 x 60mm Heavy Duty Ball Bearing Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Motherboard Size Support ATX M/B (Max. 12″ x 9.6″ ATX/Micro ATX)
System Board Pentium 4, Pentium D, Dual Xeon, AMD 64, Dual Opteron
Color Black (Standard), Beige or Custom
Weight 12.5kgs / 27.5lbs
Product Applications Multipurpose Server
Indicators LEDs for Power, HDD Activity, & LAN
Buttons Recessed Power On/Off & System Reset Thin Rocker Switches
