Features

  • EOL (End-of-life) call for replacement
  • High performance SAS controller with Intel 1.2GHZ IOP348
  • 512MB on-board DDR2-533 SDRAM with ECC protection
  • Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
  • Multiple Raid selection
  • Online array roaming
  • Online Raid level/stripe size migration

3U 16-Bay External PCIe to SAS/ SATA RAID Subsystem NR333A Product Description

Netstor redefines the performance, storage scalability and IO expansion capability of Direct Attached Storage (DAS) with the new 3U 16 Bay External PCIe to SAS/ SATA RAID Subsystem NR333A. The newly NR333A features 16 SAS/SATA disk bays together with extra PCIe slots inside this external enclosure and utilizes latest technology of PCIe 2.0 bus to provide the extremely high bandwidth up to 40Gb/s between Host Server and NR333A while simply installing Netstor’s host PCIe adapter into Host Server’s one of PCI Express 2.0 x8/x16 slots. The high bandwidth is fairly enough for great speed data transfers of all the disks and high speed IO cards populated in the enclosure.

High Performance & Scalability

With built-in high performance Intel 1200MHz IOP348 SAS controller, the NR333A provides various RAID level configuration and features an extra external SAS expander port for flexibly increasing SAS expander JBOD enclosure(NS330S-8020) as data growth. All the disks in the daisy chain can be configured as Raid 0, 1, 3, 5 or 6 and be able to deliver sustained high performance to meet your application requirements of any speed critical tasks and data protection.



Specifications

Host Adapter :
  • Host Requires a PCI-Express x8 (8-lane) or x16 (16-lane) slot
  • External PCI-Express cable up to 20Gbps
Controller & RAID Feature :
  • High performance SAS controller with Intel 1.2GHZ IOP348
  • 512MB on-board DDR2-533 SDRAM with ECC protection
  • Supports RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
  • Multiple Raid selection
  • Online array roaming
  • Online Raid level/stripe size migration
Storage :
  • Supports up to 16 SAS/SATA 3Gb/s or 6Gb/s HDDs

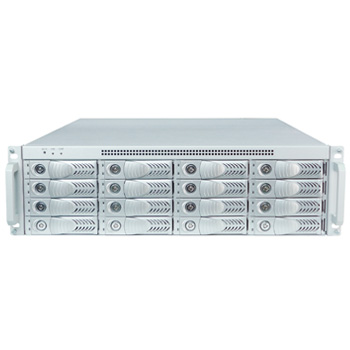

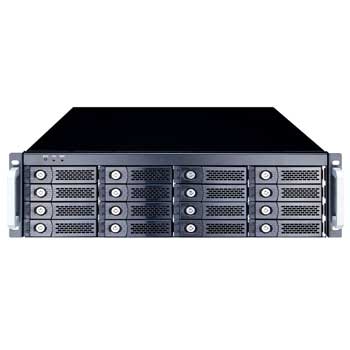

  • Rugged 3U 16-Bay Rackmount Chassis
  • Provides up to 2 PCI Express slots expansion for any standard add-on cards(One x8 & One x4 connectors)
  • Individual Key lock of each HDD tray for physical security
Monitors/Indicators :
  • Web base GUI Raid Manager for remote management
  • SMTP manager, SNMP agent and Telnet function via Ethernet port
  • API library for customer to write monitor utility
  • FAN fail LED
  • Over Temperature LED
  • HDD fail LEDs
Fan Cooler :
  •  Internal Two – 80x80x25 mm Fan Modules
  •  Rear Two – 75x75x28 mm Blowers
  •  Hot-Swappable
Power Supply:
  •  Server-grade 400W Redundant Power Supply
  •  Low-noise design
  •  Universal: 100~240VAC, 50/60Hz
Environmental Requirements:
  •  Operation Temperature: 5°C ~ 50°C
  •  Storage Temperature: -20°C ~ 70°C
  •  Operation Humidity: 10% ~ 80%, non-condensing
  •  Storage Humidity: 5% ~ 95%
Dimension :
  •  559(D) x 482(W) x 131(H) mm
Operating System:
  • Windows 2000/XP/Server 2003
  • Windows Vista/ Windows 7
  • Mac OS 10.4.x/10.5.x/10.6.x(EFI BIOS Support)
  • Linux
  • FreeBSD
  • Novell Netware 6.5
  • SCO Unixware 7.x.x
Scalibility :
  • One external SAS port for flexibly increasing up to 7 units of SAS expander JBOD enclosure (NS330S-8020)

Host Requirement and Cable length available

  • Apple Mac Pro or PC workstation with one available PCI-e x8 slot
  • External PCI-e cable available length – up to 7 Meter

Enclosure x 1
HDD Tray x 16
PCI-e 8x Host Adaptor with standard and low profile host bracket x 1
PCI-e 8x cable (1.5 meter) x 1
Power Cord x2
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
