Features
• ATX 12V / EPS 12V
• POWER GOOD SIGNAL: PW-OK is power good signal and should be asserted high by the Power Supply to indicate that +5VDC and +3.3VDC output are above the under voltage thresholds of the Power Supply TTL. compatible signal out with 100ms to 500ms.
• OVER POWER PROTECTION: The Power Supply shall shut down when output power exceeds 110﹪to 160﹪ of full load and require a power on cycle be performed by the operate
• OVER VOLTAGE PROTECTION: Standard on +5.0V, set at 6.5VDC ± 0.75VDC
• SHORT CIRCUIT PROTECTION: A short circuit placed between the DC return and the output shall cause no damage and the Power Supply shall shutdown.
• EMI: FCC CLASS B, CISPR22 CLASS B.
• AGENCY APPROVALS: TO MEET UL, CUL, TUV.
• MTBF OF Power Supply ELECTRONNIS: 100,000 hours.

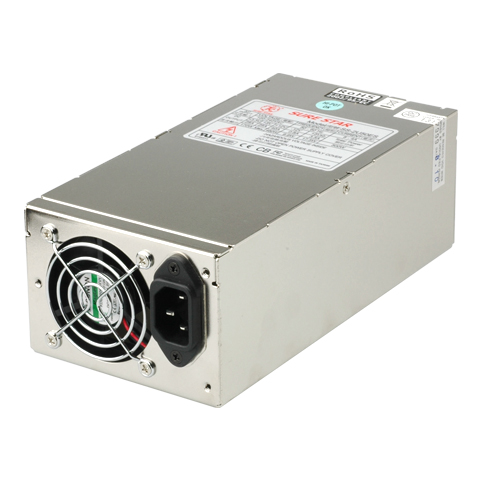

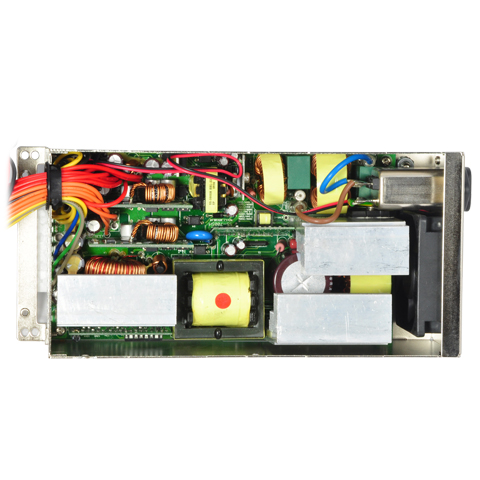

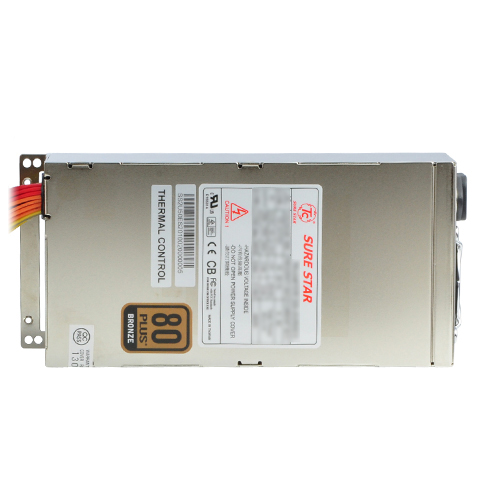

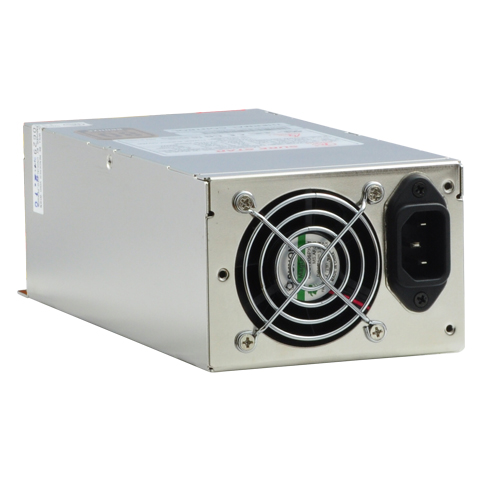

2U Power Supply 400W SS-2U40ES Product Description

The 2U Power Supply 400W SS-2U40ES is the perfect upgrade or replacement for powering an AMD or Intel based server. Ideal for 2U or 3U server cases, this 2U power supply provides your system with a 80 Plus certified power solution, as well as protection against over load, over voltage and over current situations – the perfect solution for delivering stable power to the most demanding devices. This power supply also comes with a built-in, ball-bearing fan, that helps provide superior air flow- in turn, ensuring optimum operating temperatures for long-lasting performance.

80-plus









AC Input

  • Input voltage: 100 to 240 VAC
  • Input frequency: 47 to 63 Hz

General Specifications

  • DIMENSION: D200 X W100 X H70mm

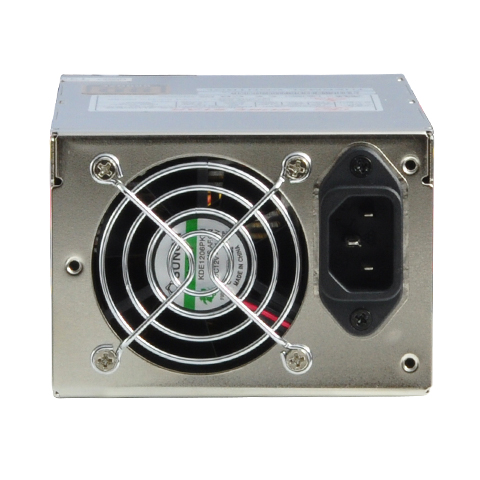

  • COOLING: ONE 60mm DC FANS
  • Hold-up time: >17ms
  • Efficiency: >80% at full load
  • Voltage: 1500VAC from input to output
  • MTBF: 100,000 hours

Environmental Specifications

  • Operating temperature: 0˚C to +50˚C
  • Storage temperature: -20˚C to +80˚C
  • Relative humidity: 95% non-condensing

AC Output

OUTPUT VOLTAGE OUTPUT CURRENT REGULATION OUTPUT
MIN ( A ) MAX ( A ) LOAD LINE RIPPLE & NOISE
MAX. [ P-P ]
+5V 0.5 25 ±5% ±1% 60mV
+12V 2 32 ±5% ±1% 120mV
-12V 0 0.8 ±5% ±1% 120mV
+3.3V 0.5 25 ±5% ±1% 60mV
+5VSB 0.1 3.5 ±5% ±1% 60mV



1. Noise Test – Noise bandwidth is from DC to 20 MHz.
2. Ripple frequencies greater than 1MHz shall be attenuated by the measurement System.
3. Add 0.1uF/10uF capacitor at output connector terminals for ripple and noise measurements.
4. The combined total power from 5V & 3.3V shall not exceed 160W.

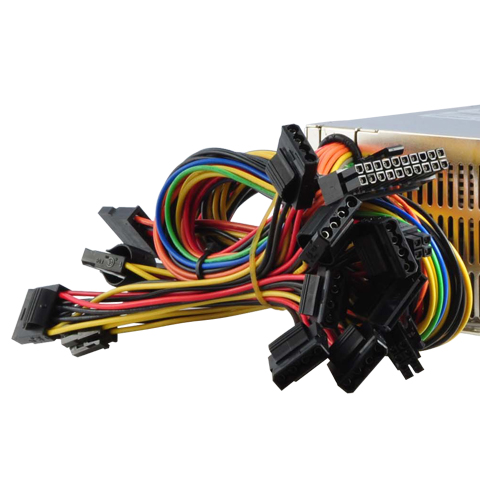

20 + 4 pin
P4 MB
peripheral
FDD
8-Pin
SATA
20+4 Pin P4 MB Peripheral FDD 8-Pin SATA
X 1 X 1 X 9 X 1 X 1 X 2
