Features

  • Chassis Height: 1U
  • Dimensions: 19″ x 1.75″ x 25.6″
  • Dimensions(mm): 483 x 44 x 650
  • Drive Bays: 1 x 5.25″, 1 x 3.5″ Open, 2 x 3.5″ Swappable
  • Power Supply: 1U 250~400W ATX P/S

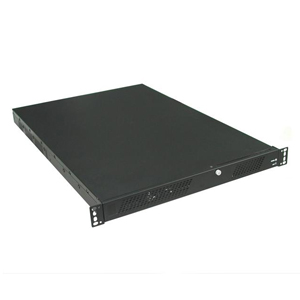

1U Rackmount Chassis EJ-1U643-C Product Description

The 1U Rackmount Chassis EJ-1U643-C feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 1U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and seven cooling fans so the system stays cool while running at optimal levels. The EJ-1U643-C can be used to host a web server, proxy server, cluster server, VPN Gateway or as a high-end workstation.

Driver Capacity 1 x 5.25″, 1 x 3.5″ Open & 2 x 3.5″ Swappable
Dimensions 19″ x 1.75″ x 25.6″
Power Supply (Rear Chassis Installation) 1U 250~400W ATX P/S
Cooling Units 7 x (40 x 28 mm) High Speed Fans
Construction Heavy Duty Cold Rolled Electroplated Steel
Motherboard Size Support ATX M/B (Max. 12″ x 13″ EEB)
System Board Dual Xeon, Pentium 4, Dual Pentium III based boards
Color Black, Beige, or Custom Design
Weight 14.5 kgs / 32 lbs
Product Applications Web Server, Proxy Server, VPN Gateway, Cluster Server, High-end Workstation
