Features

  • Chassis Height: 1U
  • Dimensions: 19″ x 1.7″ x 17.7″
  • Dimensions(mm): 483 x 44 x 450
  • Drive Bays: 1 x Slim CD-ROM, 1 x 3.5″ HDD
  • Power Supply: 1U Redundant up to 550W ATX P/S (Rear Installation)

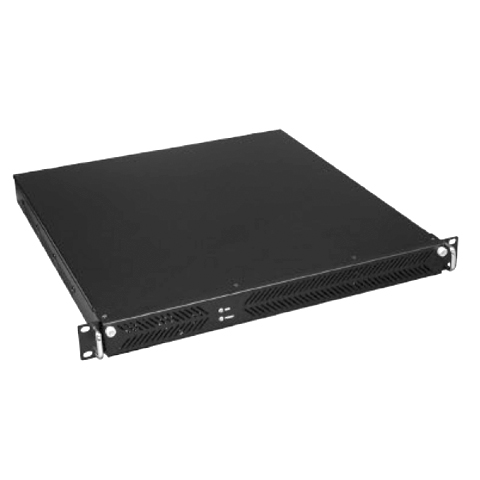

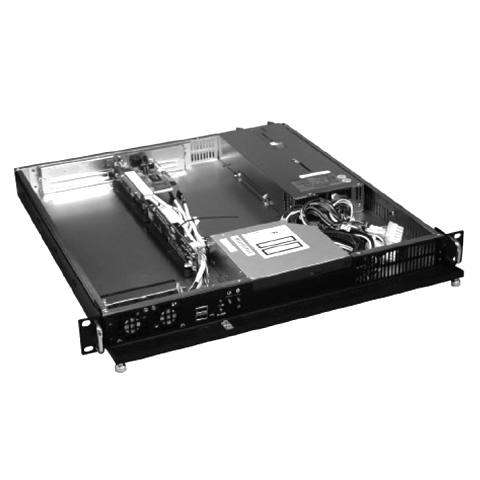

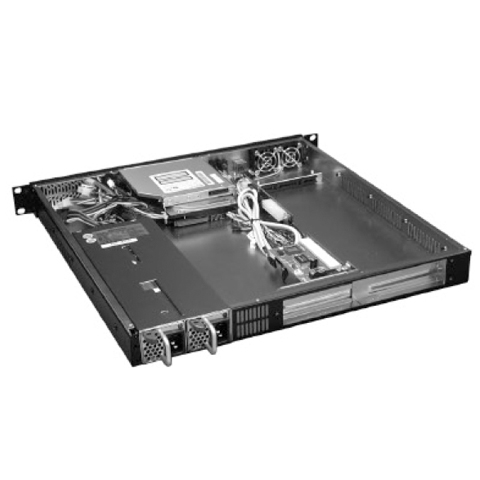

1U Rackmount Case EJ-1U4502 Product Description

The 1U Rackmount Case EJ-1U4502 feature the standard EIA RS-310C 19″ chassis’ which will meet all of your computing needs while optimizing the space on your rack. This sleek and rigid 1U chassis has a unique thermal cooling design that includes a front cold air intake tunnel and six cooling fans so the system stays cool while running at optimal levels. The EJ-1U4502 can be used to host a web server, as a print server, and function as a high-end workstation.

Standard EIA RS-310C 19″ Rackmount Standard
Construction Heavy Duty Cold Rolled Electroplated Steel
Color Black (Standard), Beige or Custom
System Boards 3 Slot Passive Backplane
Drive Capacity 1 x Slim CD-ROM & 1 x 3.5″ HDD
Power Supply (Optional) 1U Redundant up to 550W ATX P/S (Rear Installation) Max. Depth 355mm
Cooling 2 x (40 x 20mm = 7CFM ea.) Fans
Front Door Single Door With 2 Thumbscrews
Connector Port (Front) 2 x USB Ports
Indicators LEDs for Power ON/OFF, HDD Activity
Switch Power ON/OFF, System Reset
Dimensions (W x H x D) 483 x 44 x 450 mm (19″ x 1.7″ x 17.7″)
Cu ft 2.3
GW 8.9 kgs / 19.6 lbs
Carton Size 61.5 x 17.9 x 60 (24.2″ x 7″ x 23.6″)
Humidity 5% – 95% Non-condensing
